Removal And Installation
›
Steering Gear And Linkage
›
Exploded View
Exploded View

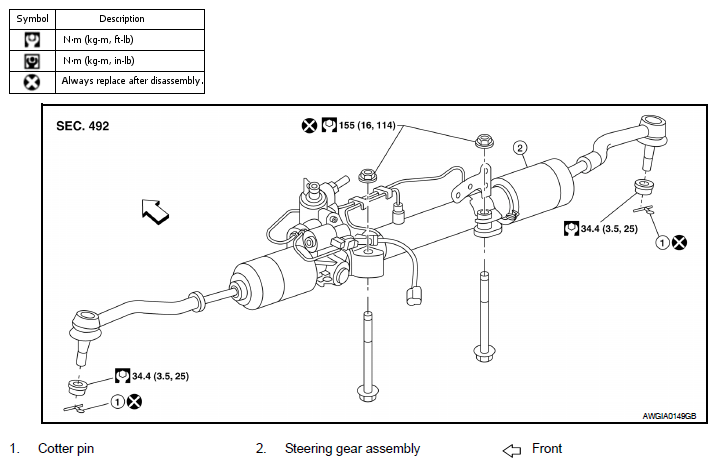

Fig 1: Exploded View Of Steering Gear Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
