Nissan-Datsun
›
2011
›
Maxima S
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Removal And Installation
›
Control Valve
›
Exploded View
Exploded View

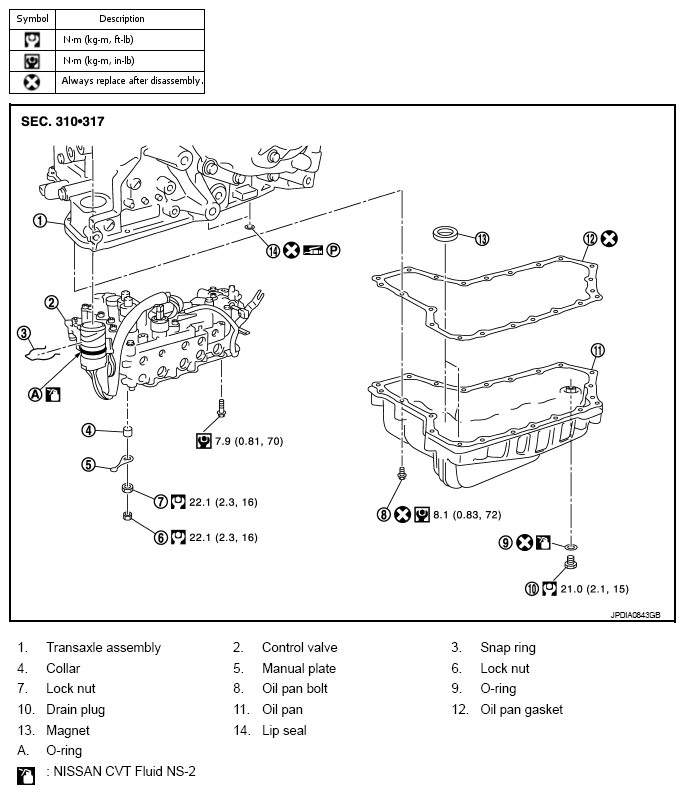

Fig 1: Exploded View Of Control Valve With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
