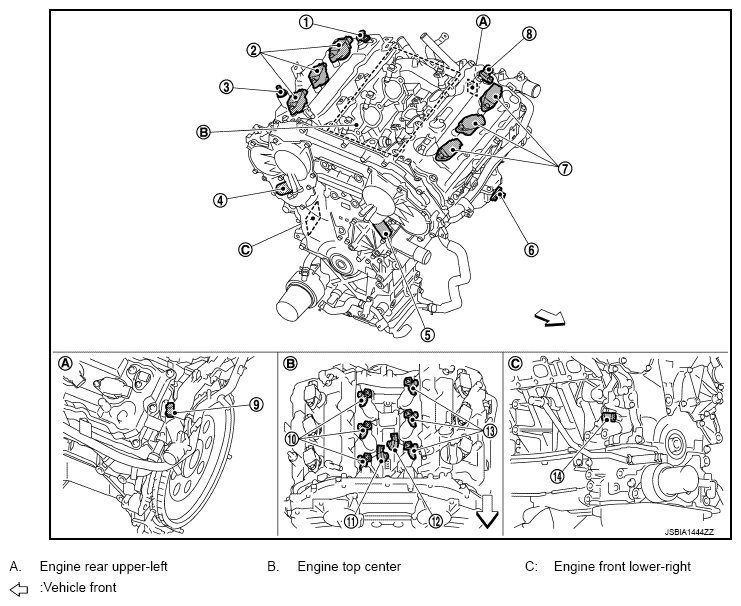

ENGINE CONTROL SYSTEM : Component Parts Location: Engine
ENGINE CONTROL SYSTEM COMPONENTS FUNCTION CHART
| No. | Component | Function |
|---|---|---|
| 1. | Camshaft position sensor (PHASE) (bank 1) | "CAMSHAFT POSITION SENSOR (PHASE) " |
| 2. | Ignition coil (with power transistor) (bank 1) | "IGNITION COIL (WITH POWER TRANSISTOR) " |
| 3. | PCV valve | "POSITIVE CRANKCASE VENTILATION (PCV) " |
| 4. | Intake valve timing control solenoid valve (bank 1) | "INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| 5. | Intake valve timing control solenoid valve (bank 2) | "INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| 6. | Crankshaft position sensor (POS) | "CRANKSHAFT POSITION SENSOR (POS) " |
| 7. | Ignition coil (with power transistor) (bank 2) | "IGNITION COIL (WITH POWER TRANSISTOR) " |
| 8. | Camshaft position sensor (PHASE) (bank 2) | "CAMSHAFT POSITION SENSOR (PHASE) " |
| 9. | Engine coolant temperature sensor | "ENGINE COOLANT TEMPERATURE SENSOR " |
| 10. | Fuel injector (bank 1) | "FUEL INJECTOR " |
| 11. | Knock sensor (bank 1) | "KNOCK SENSOR " |
| 12. | Knock sensor (bank 2) | "KNOCK SENSOR " |
| 13. | Fuel injector (bank 2) | "FUEL INJECTOR " |
| 14. | Engine oil temperature sensor | "ENGINE OIL TEMPERATURE SENSOR " |
