SRS Airbag Control System (CROSSCABRIOLET)
›
System Description
›
System
›
System Diagram
System Diagram

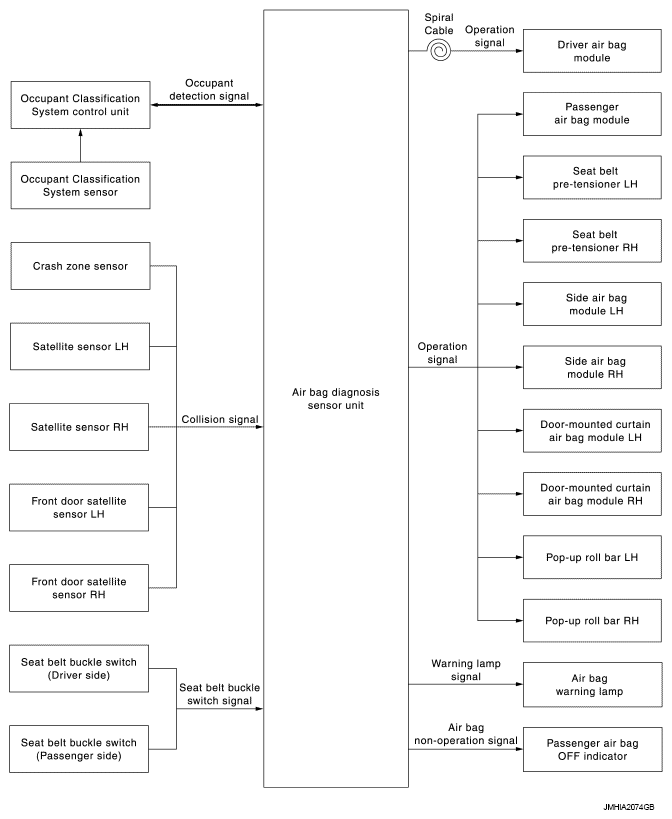

Fig 1: SRS Airbag Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
