Exploded View: Disassembly

Type: A003TJ1791

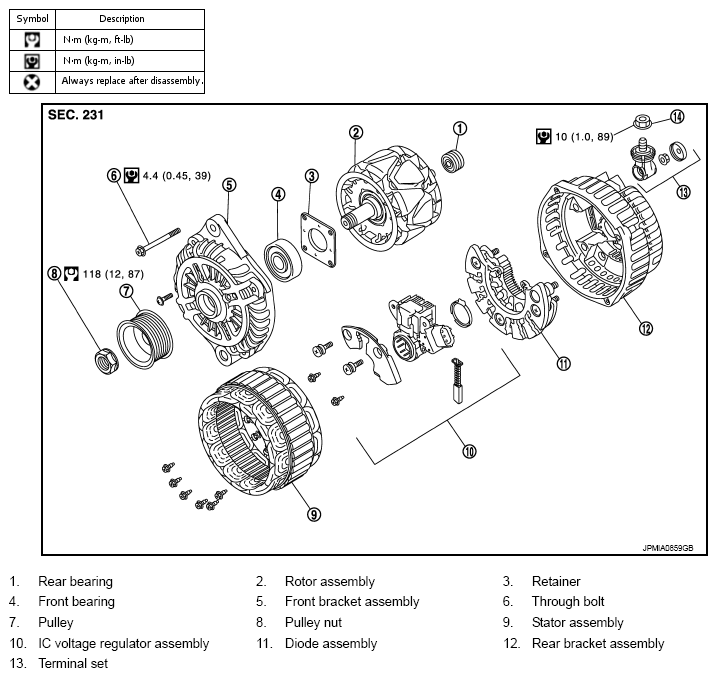

Fig 1: Disassembled View Of Alternator With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
