Engine Control System - Introduction (VQ35DE) (Except CROSSCABRIOLET)
›
System Description
›
Electric Ignition System
›
System Diagram
System Diagram

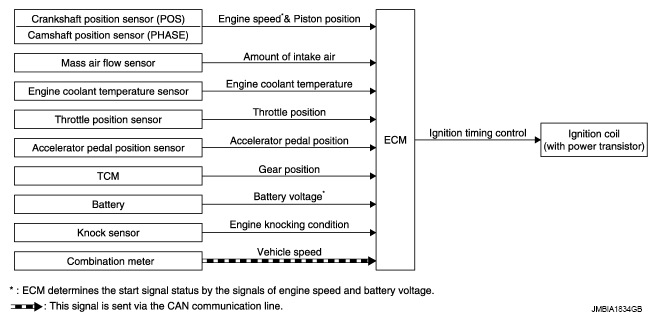

Fig 1: Electric Ignition System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
