System Description: System: Schematic

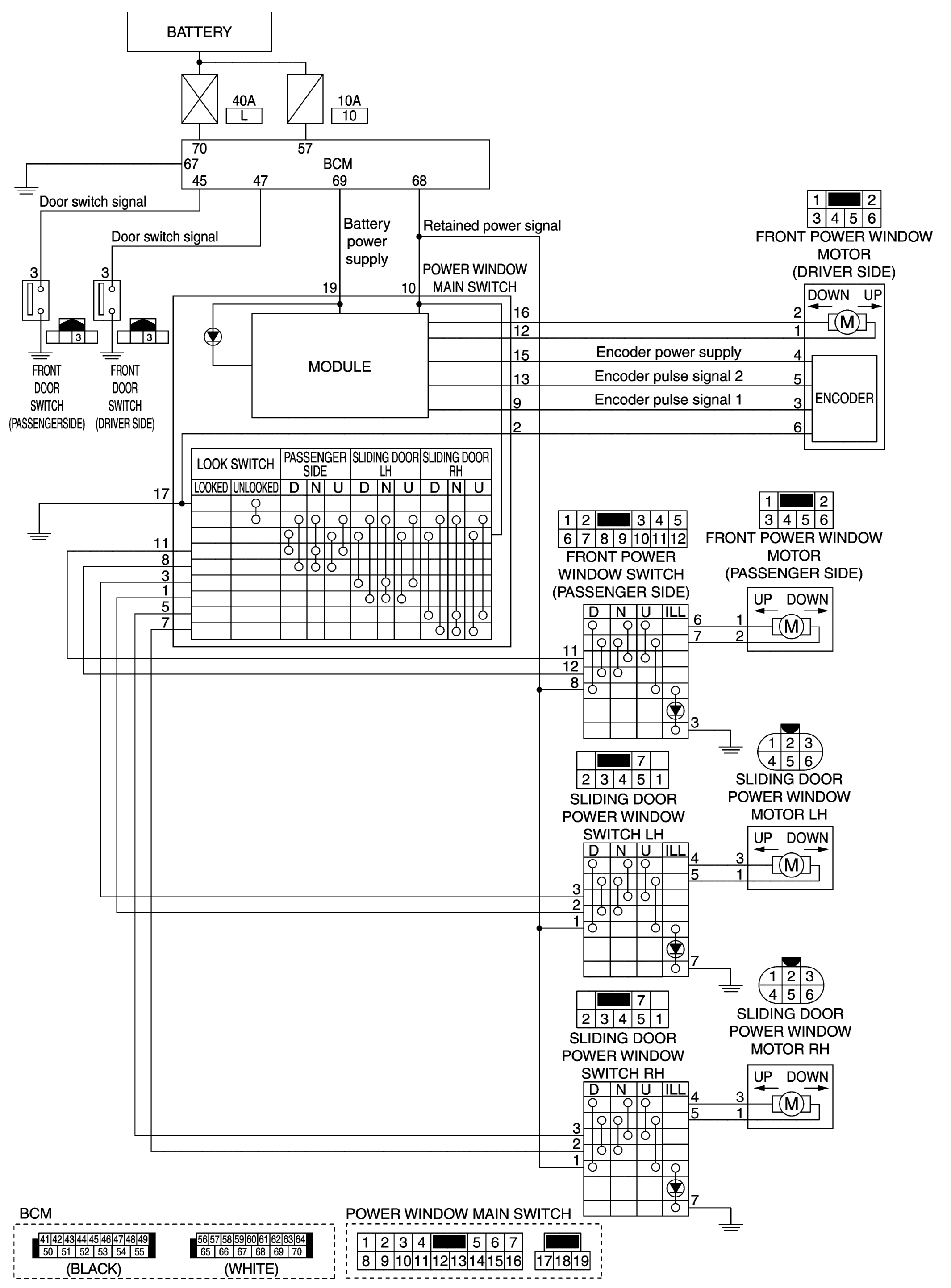

Fig 1: Power Window Main Switch System Schematic
G07053271Courtesy of NISSAN MOTOR CO., U.S.A.
