Exploded View
›
Disassembly
Exploded View: Disassembly

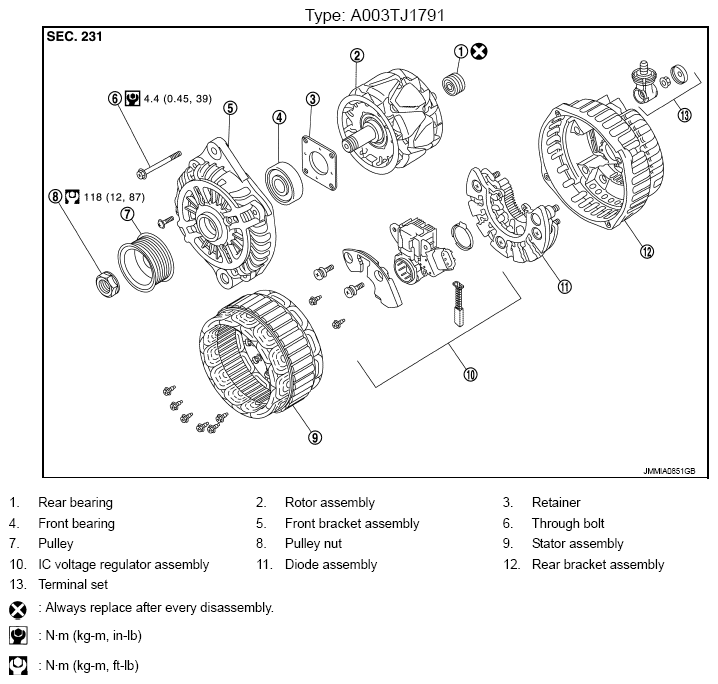

Fig 1: Disassembled View Of Alternator With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
