Removal And Installation
›
Starter Motor
›
Exploded View
›
Removal
Exploded View: Removal

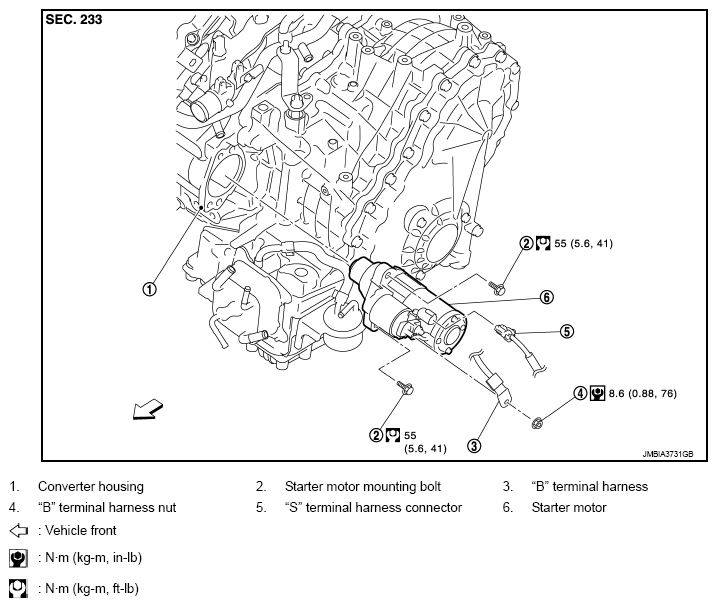

Fig 1: Starter Motor Removal With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
