FixVault
Home
›
Nissan-Datsun
›
2011
›
Quest LE
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Removal And Installation
›
EVAP Canister
›
Exploded View
Exploded View

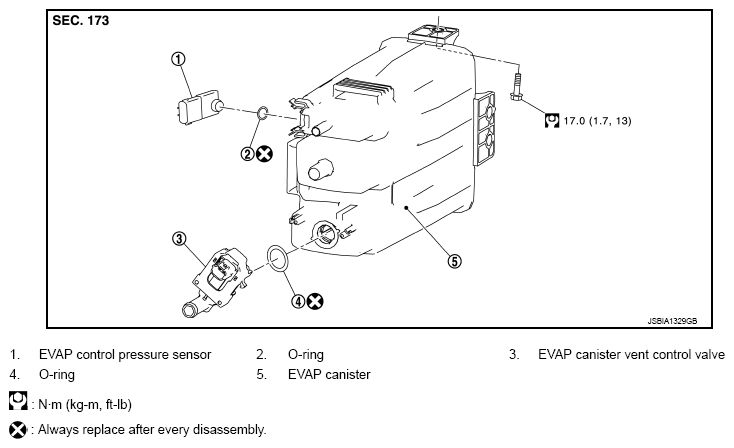

Fig 1: EVAP Canister Connector With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
