Removal and Installation: Removal

Remove battery. Refer to "EXPLODED VIEW ".
Disconnect ECM harness connectors. Refer to "HARNESS CONNECTOR ".
Remove ECM mounting nuts (1), and then remove ECM (A).

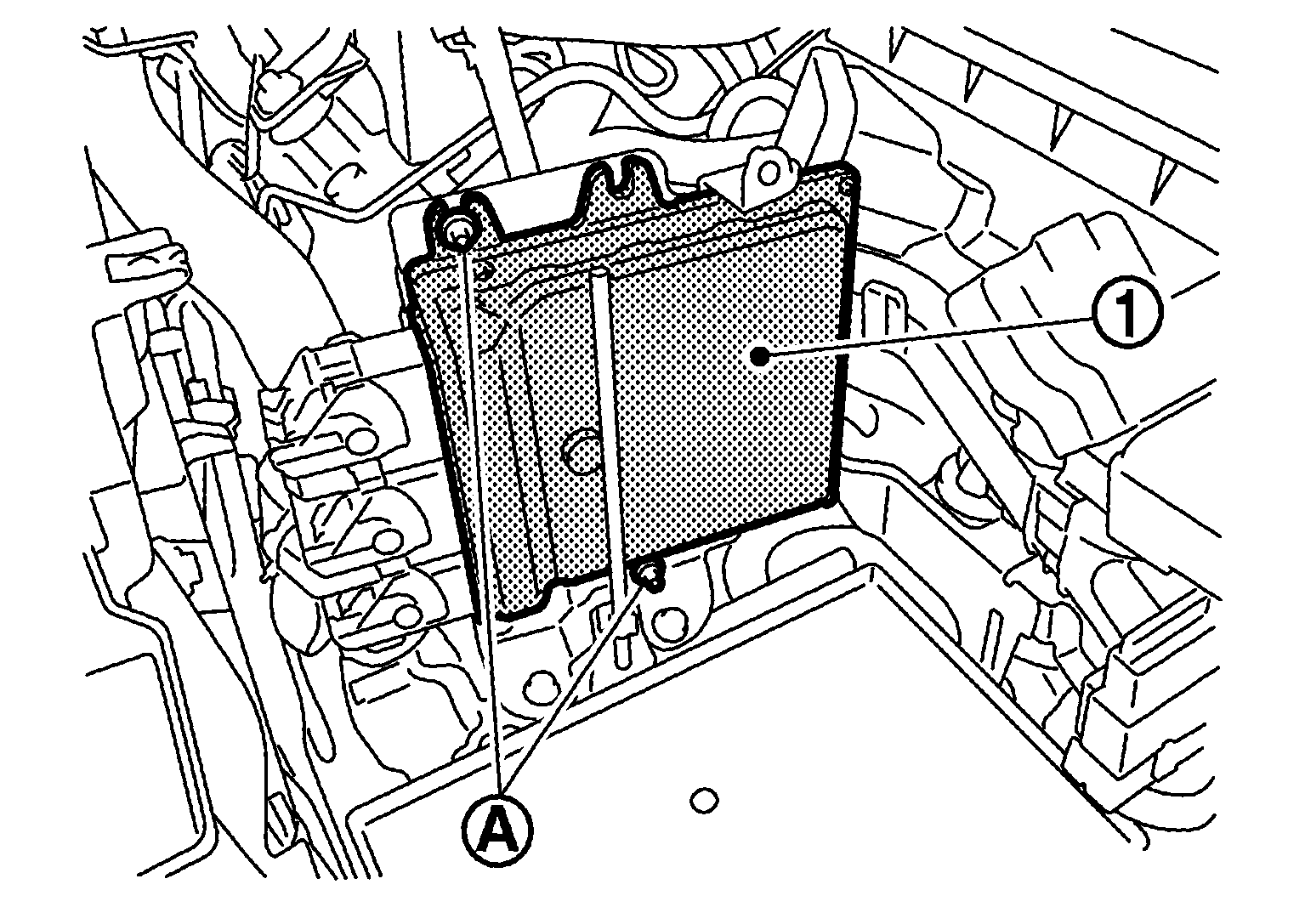

Fig 1: Identifying ECM With Mounting Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
