Component Parts Location

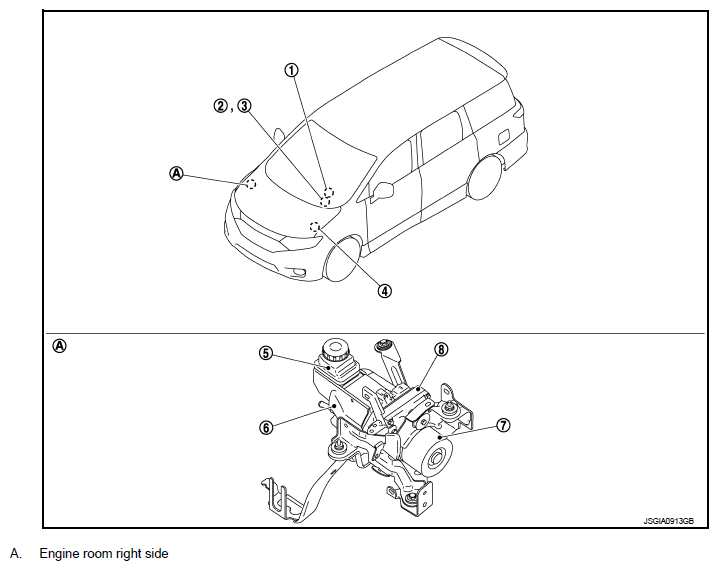

Fig 1: Identifying Steering Control System Component Parts Location
G07053005Courtesy of NISSAN MOTOR CO., U.S.A.
STEERING CONTROL SYSTEM COMPONENT FUNCTION CHART

No. Component Function
1. Steering angle sensor Transmits mainly the following signals to power steering control module via CAN communication.
  • Steering angle sensor signal
2. Combination meter Transmits mainly the following signals to power steering control module via CAN communication.
  • Vehicle speed signal
The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module.
3. Hydraulic pump electric power steering system warning lamp "HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM : SYSTEM DESCRIPTION "
4. ECM Transmits mainly the following signals to power steering control module via CAN communication.
  • Engine status signal
5. Power steering oil pump assembly Reservoir tank "POWER STEERING OIL PUMP ASSEMBLY "
6. Power steering oil pump
7. Power steering motor
8. Power steering control module
