VARIABLE INDUCTION AIR SYSTEM : System Description
›
Vacuum Hose Drawing
Vacuum Hose Drawing

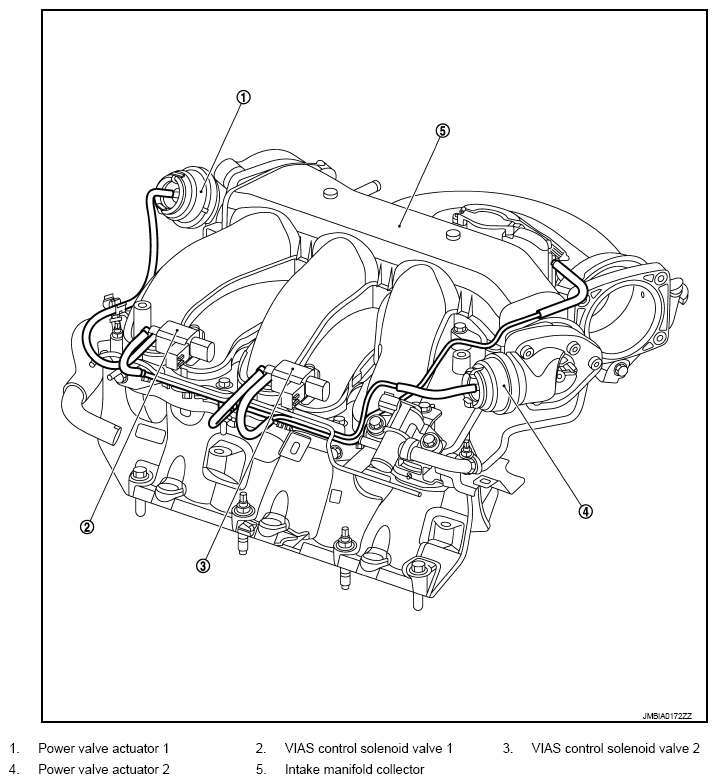

Fig 1: Identifying Vacuum Hose Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
