FixVault
Home
›
Nissan-Datsun
›
2011
›
Rogue S, FWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Security Control System
›
Without Intelligent Key System
›
System Description
›
Vehicle Security System
›
Component Parts Location
Component Parts Location

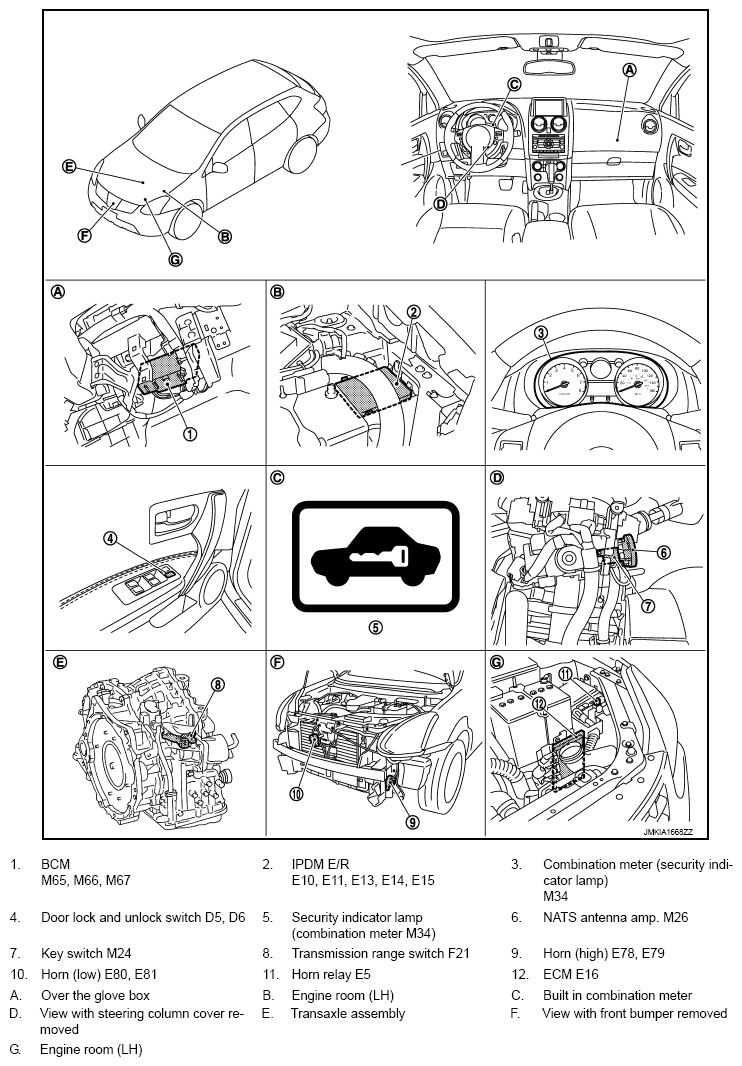

Fig 1: Vehicle Security System Component Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

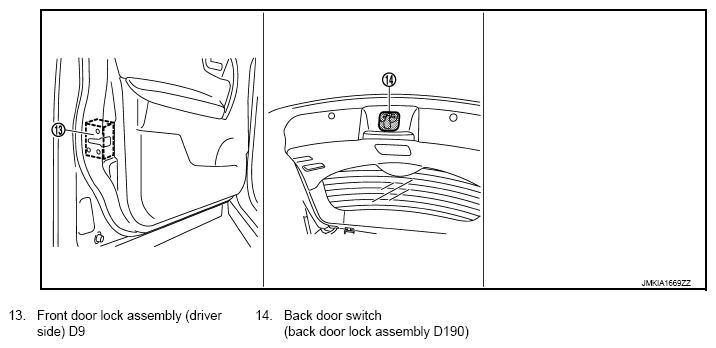

Fig 2: Vehicle Security System Component Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
