Engine Control System - Component And System Testing - For CALIFORNIA
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Basic Engine Control System
System - Basic Engine Control System

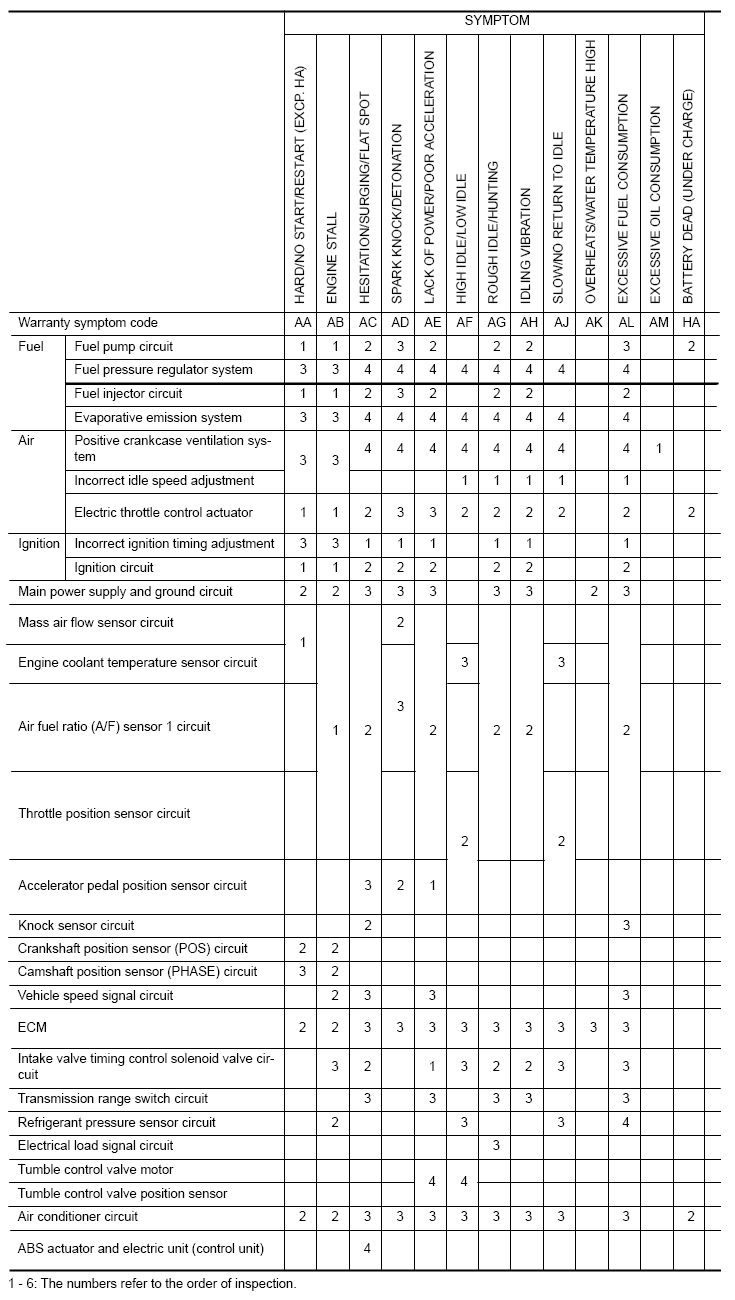

Fig 1: Basic Engine Control System Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
