Engine Control System - For MEXICO - Rogue
›
For MEXICO
›
System Description
›
Engine Control System
›
System Diagram
System Diagram

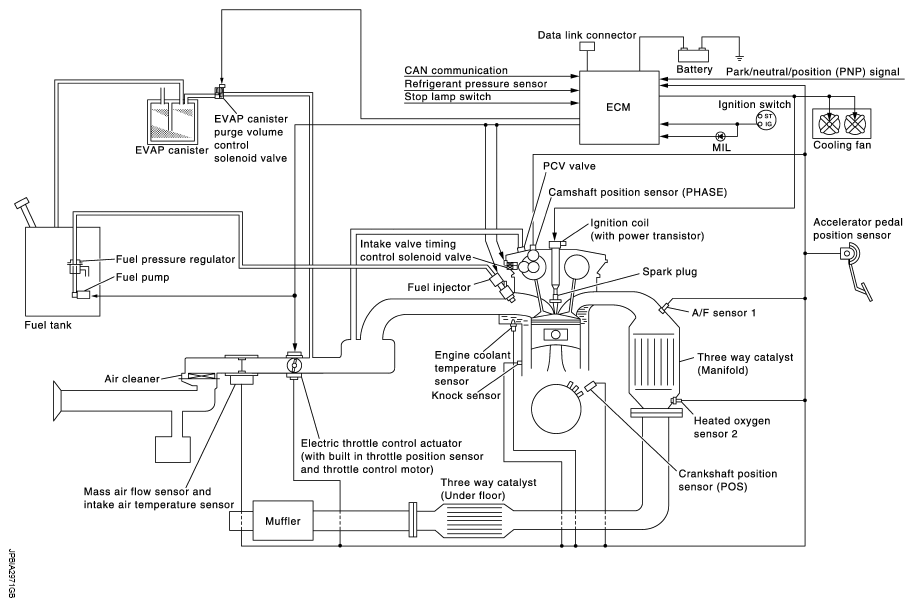

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
