Removal and Installation: Removal

1. Remove the power window main switch finisher (2).

   Refer to "FRONT DOOR FINISHER : EXPLODED VIEW " and "FRONT DOOR FINISHER : REMOVAL AND INSTALLATION ".

2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-head screw driver (A) etc.

CAUTION: Do not fold the pawl of power window main switch finisher.

NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH&RH).

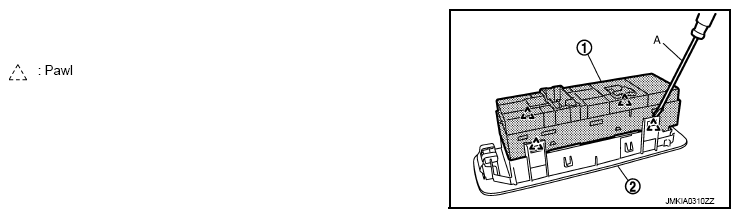

Fig 1: Removing Power Window Main Switch From Switch Finisher Using Flat Bladed Screw Driver

Courtesy of NISSAN MOTOR CO., U.S.A.
