Engine Control Component Parts Location

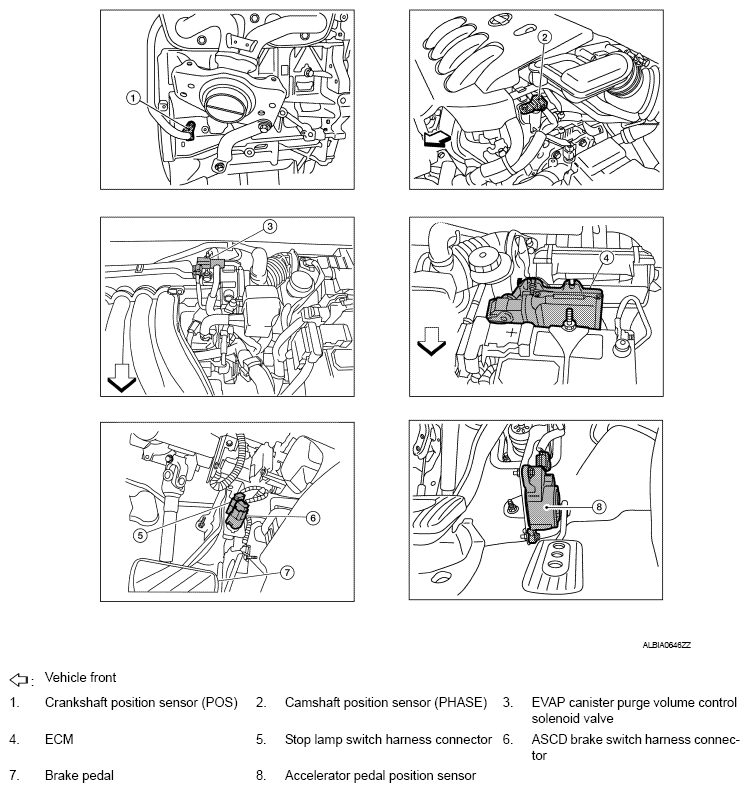

Fig 1: Location Of Engine Control Components (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

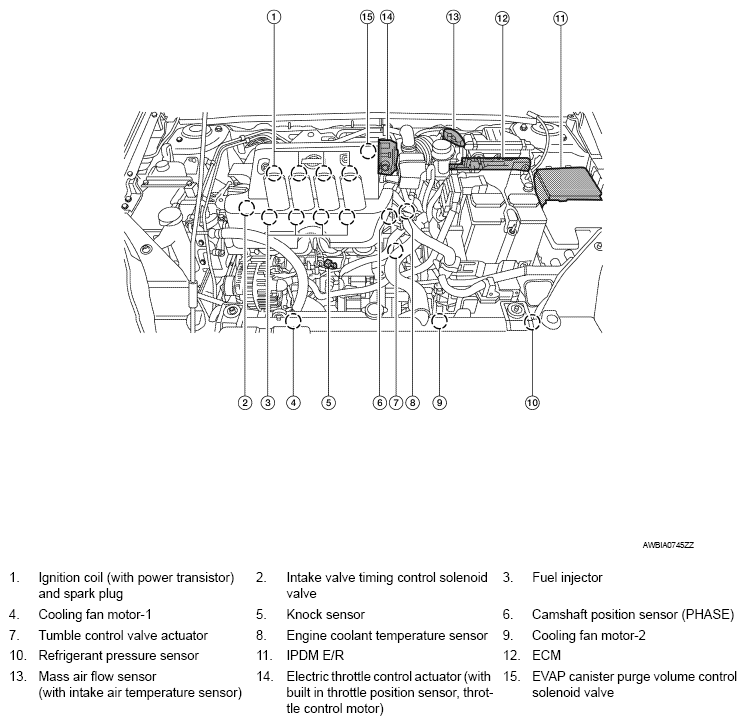

Fig 2: Location Of Engine Control Components (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

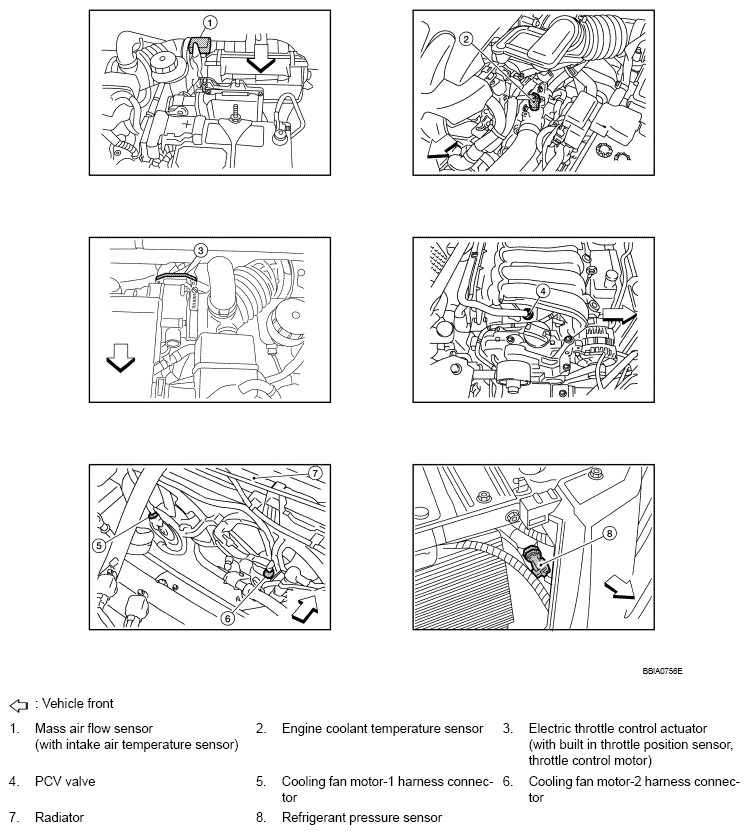

Fig 3: Location Of Engine Control Components (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

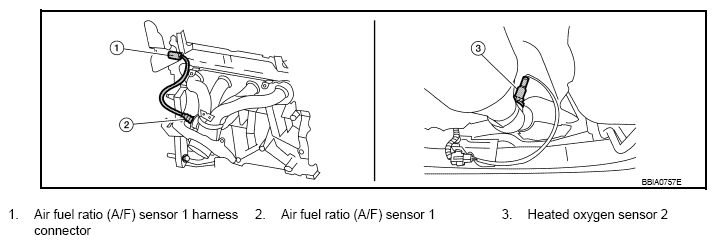

Fig 4: Location Of Engine Control Components (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

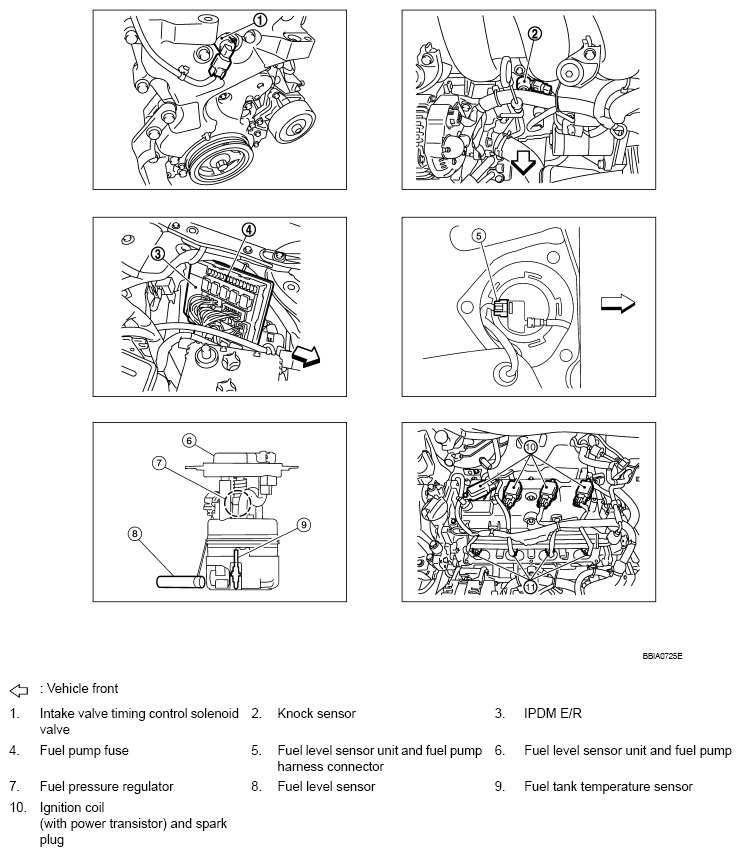

Fig 5: Location Of Engine Control Components (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

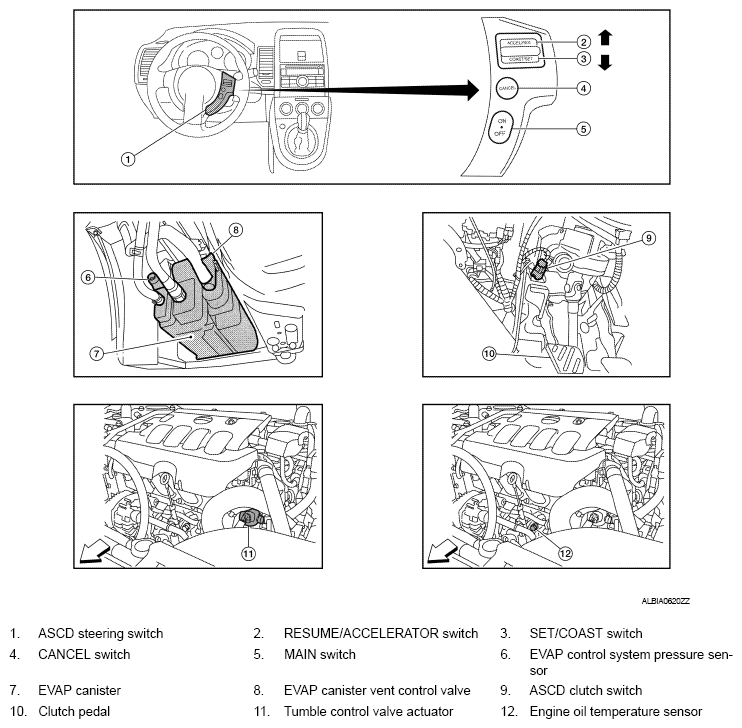

Fig 6: Location Of Engine Control Components (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Location Of Engine Control Components (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
