Service Information
›
Audio
›
Schematic
›
Without ROCKFORD FOSGATE
Without ROCKFORD FOSGATE

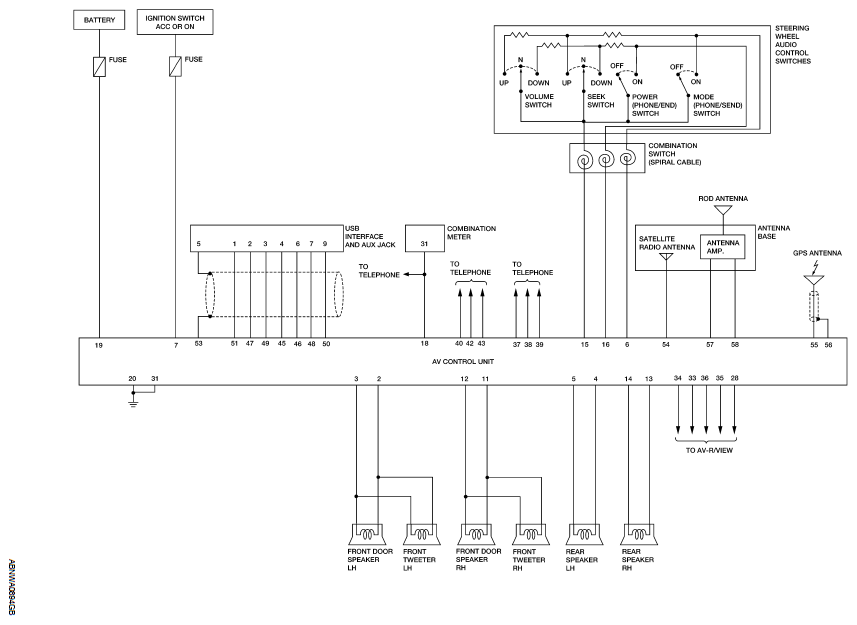

Fig 1: Audio System Without Rockford Fosgate Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
