Can Communication System: Schematic

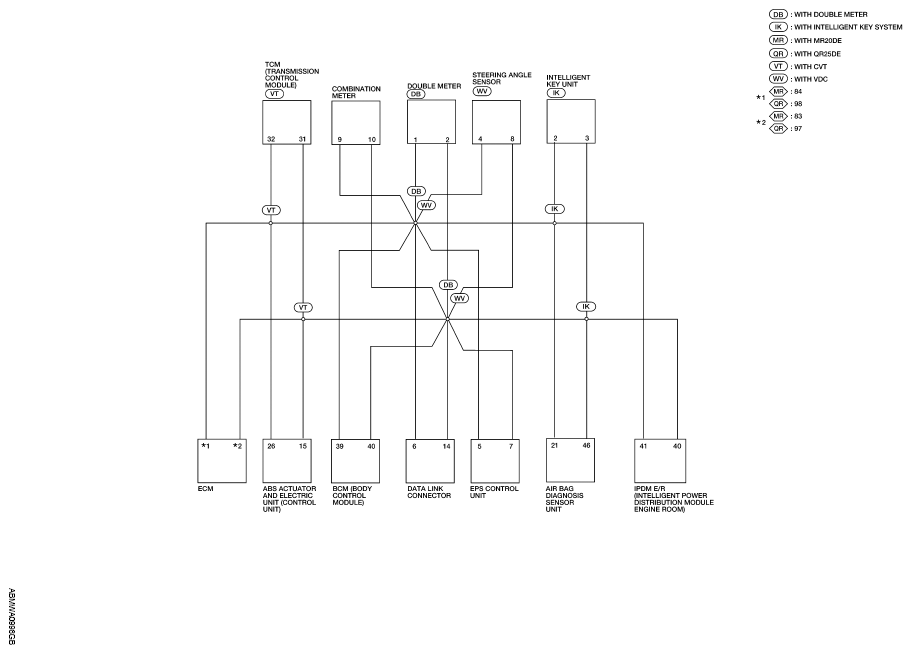

Fig 1: CAN Communication System - Schematic Diagram
G07143447Courtesy of NISSAN MOTOR CO., U.S.A.
