Service Information
›
Audio
›
Schematic
›
With ROCKFORD FOSGATE
With ROCKFORD FOSGATE

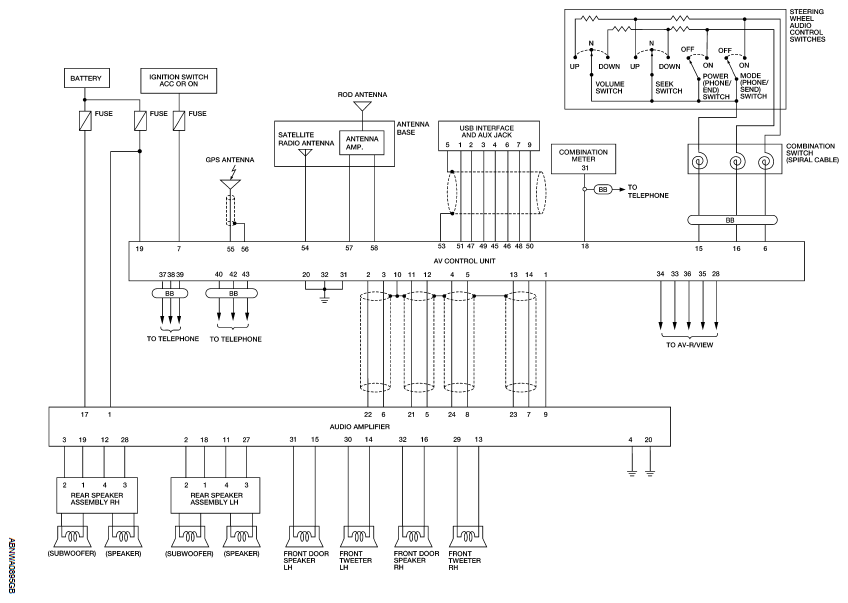

Fig 1: Audio System With Rockford Fosgate Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
