Audio
›
Schematic
›
Mid System
Mid System

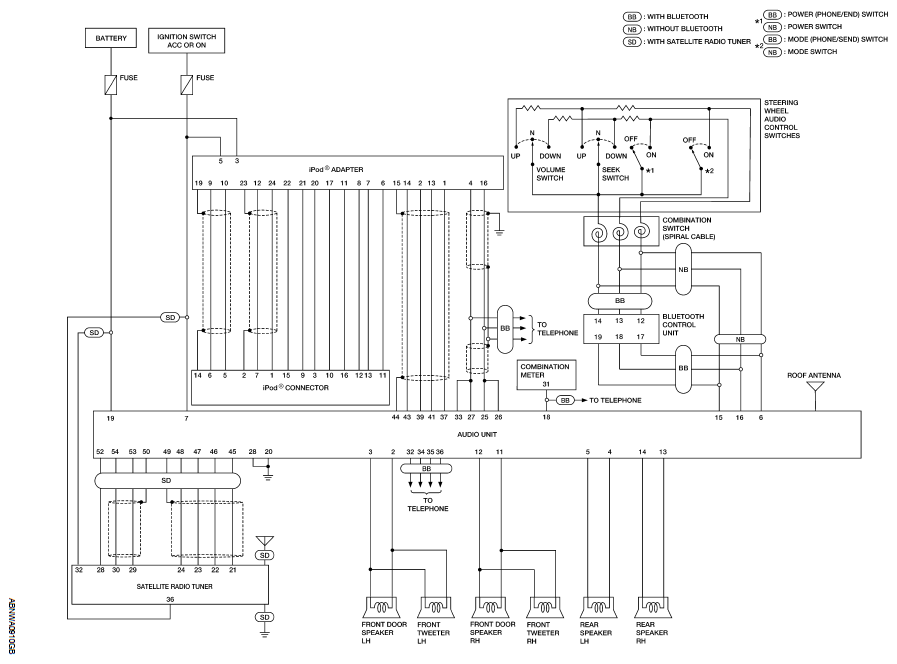

Fig 1: MID System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
