Notes
Fitting Adjustment: Notes

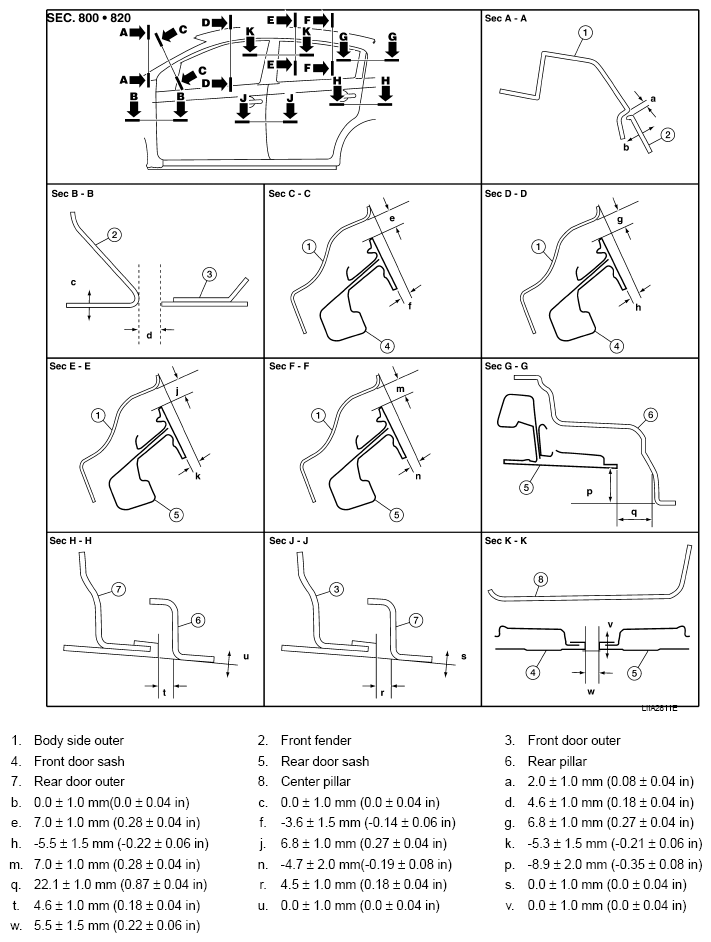

Fig 1: Illustrating Door Fitting Adjustment
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
