Intelligent Key System
›
Trouble Diagnosis Procedure
›
Preliminary Check
Preliminary Check

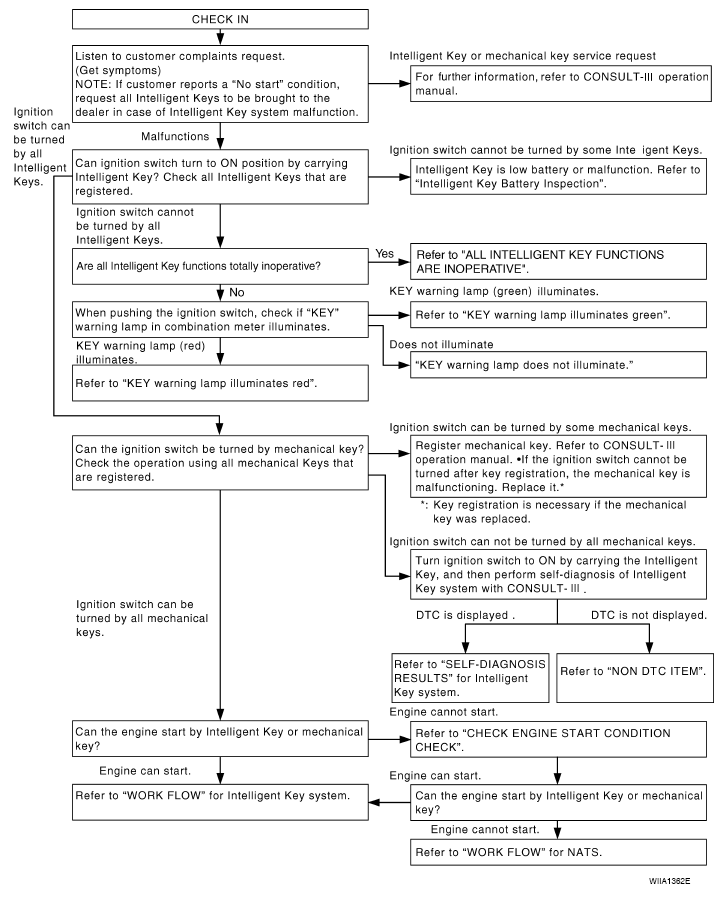

Fig 1: Trouble Diagnosis Flow Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
