Remote Keyless Entry System
›
Schematic
Remote Keyless Entry System: Schematic

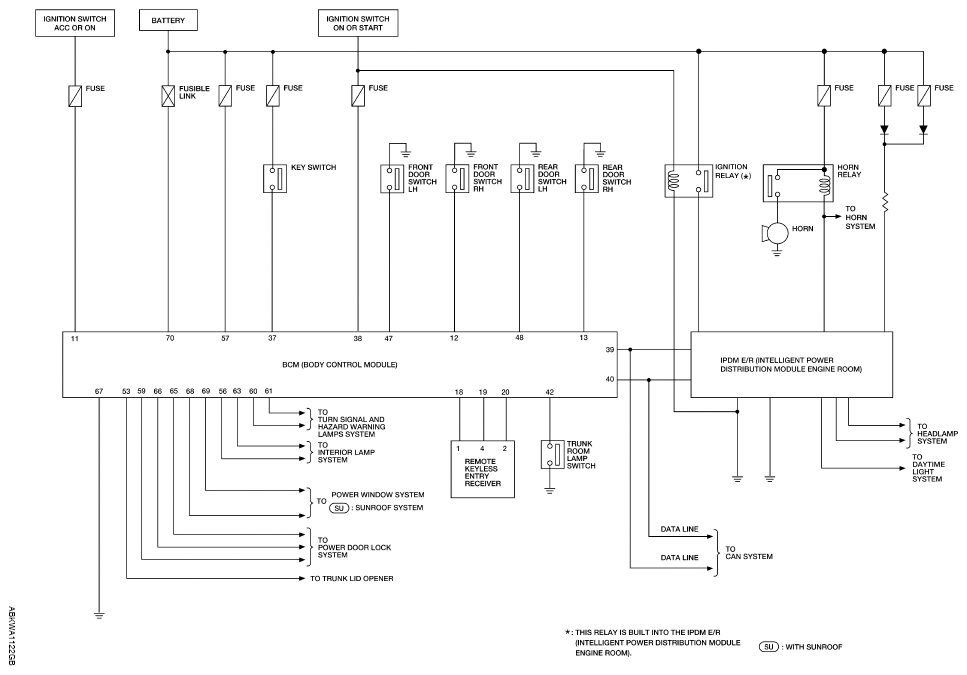

Fig 1: Remote Keyless Entry System Schematic Diagram
