Remote Keyless Entry System
›
Wiring Diagram - KEYLES -
Wiring Diagram - KEYLES -

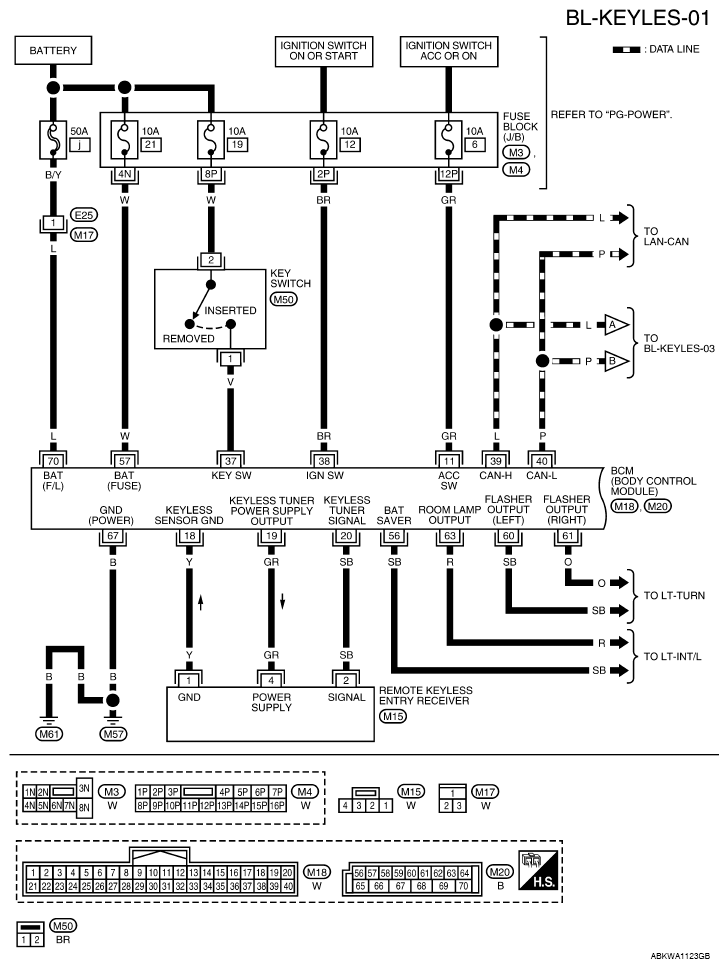

Fig 1: Wiring Diagram - BL-KEYLES-01
Courtesy of NISSAN MOTOR CO., U.S.A.

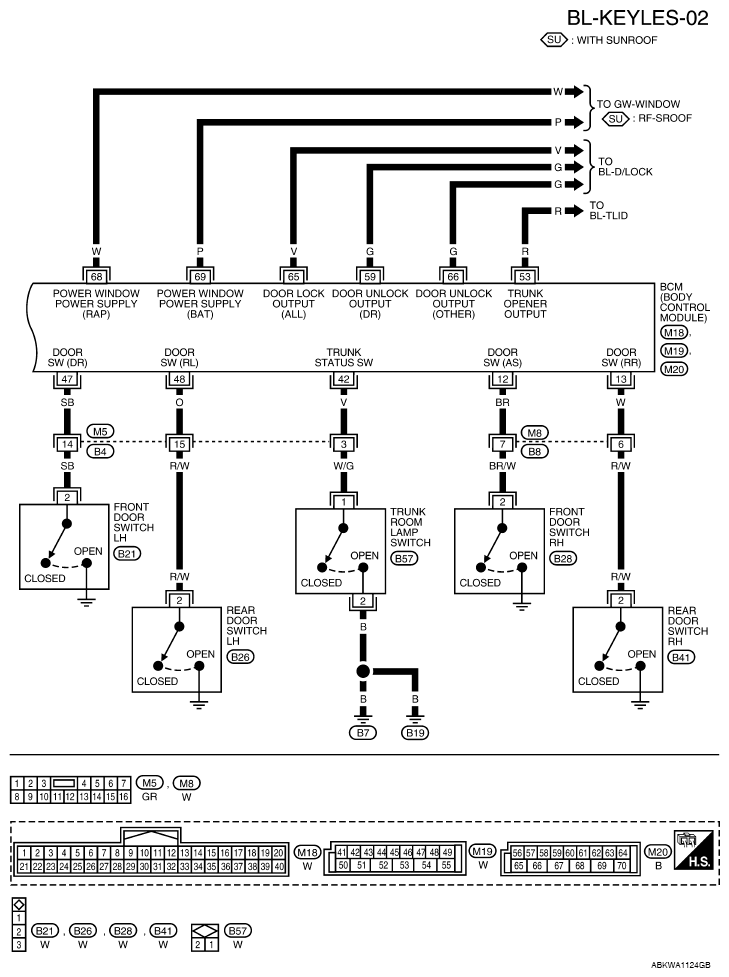

Fig 2: Wiring Diagram - BL-KEYLES-02
Courtesy of NISSAN MOTOR CO., U.S.A.

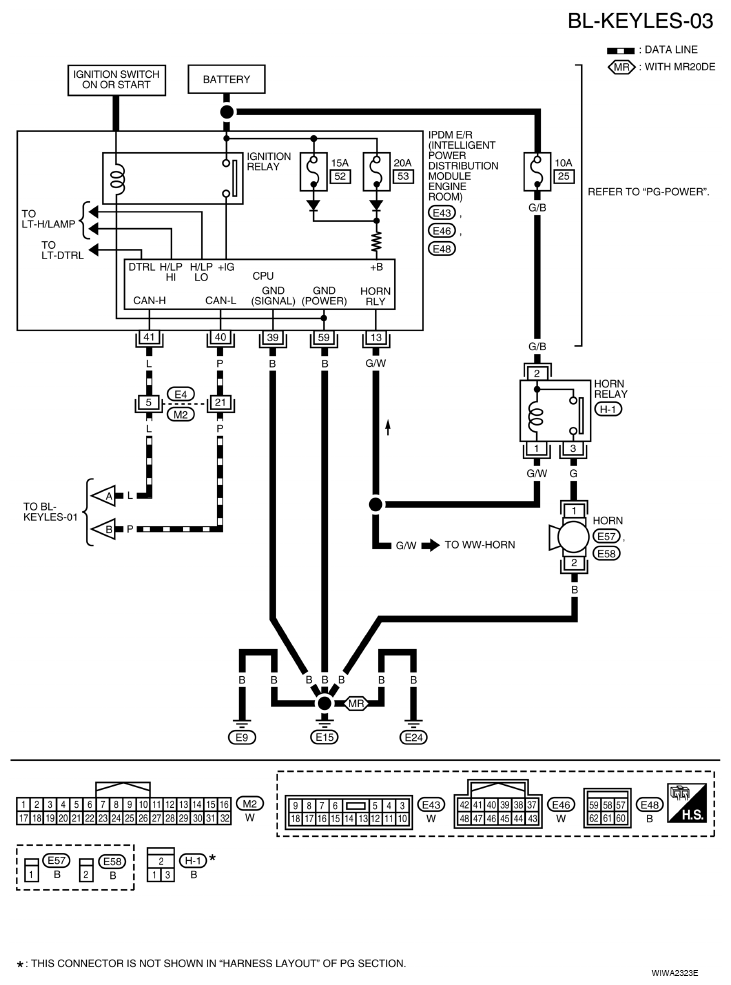

Fig 3: Wiring Diagram - BL-KEYLES-03
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
