Trunk Lid Assembly: Removal

  1. Remove the trunk lid finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER .
  2. Remove the trunk lid wire harness.
  3. Remove the nuts (a) and the trunk lid assembly (1).

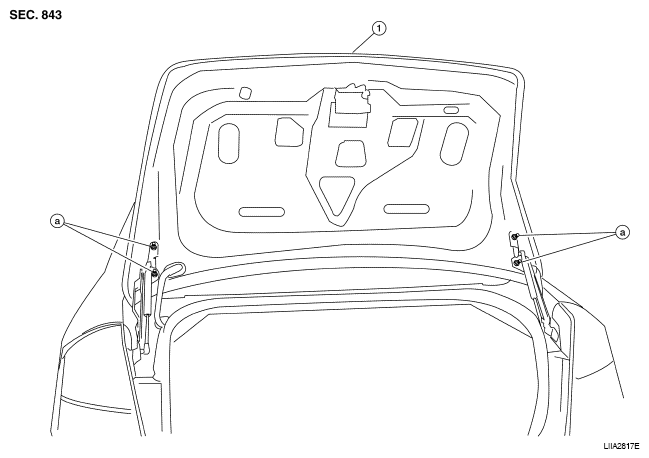

    Fig 1: Removing Nuts And Trunk Lid Assembly
    G07140486Courtesy of NISSAN MOTOR CO., U.S.A.
