Preliminary Check

CHECK BCM CONFIGURATION
Confirm BCM configuration for "THEFT ALARM" is set to "WITH". Refer to "CONFIGURATION ".

OK or NG

OK: Proceed with the preliminary check to verify system operation.

NG: Change BCM configuration for "THEFT ALARM" to "WITH". Refer to "CONFIGURATION ".

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.

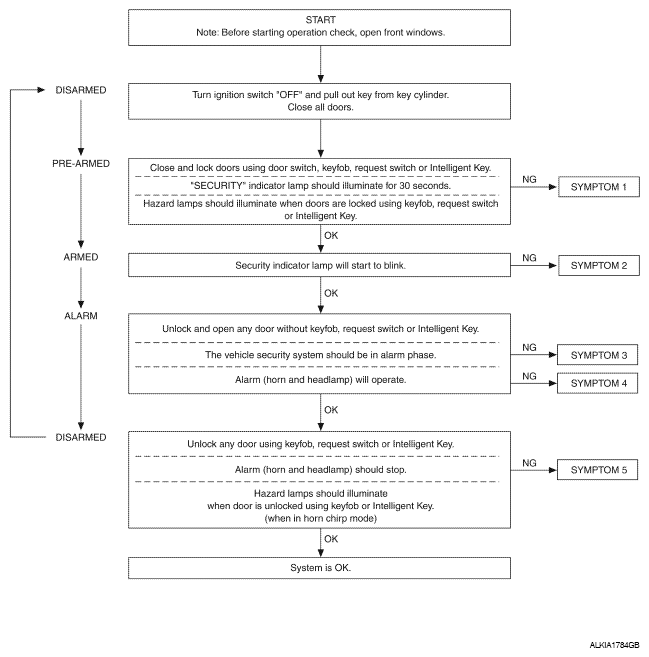

Fig 1: Vehicle Security (Theft Warning) System Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

After performing preliminary check, go to symptom chart. Refer to "SYMPTOM CHART ".
