Driver Seat

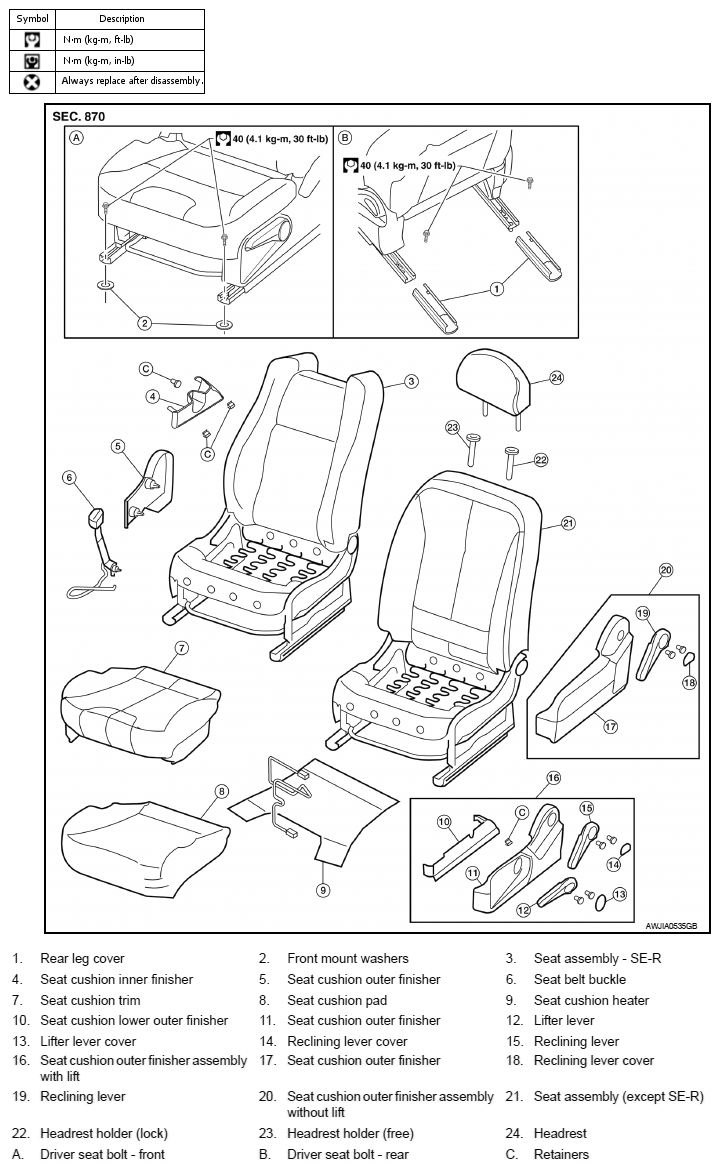

Fig 1: Exploded View Of Driver Seat Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
