Front Disc Brake: Component

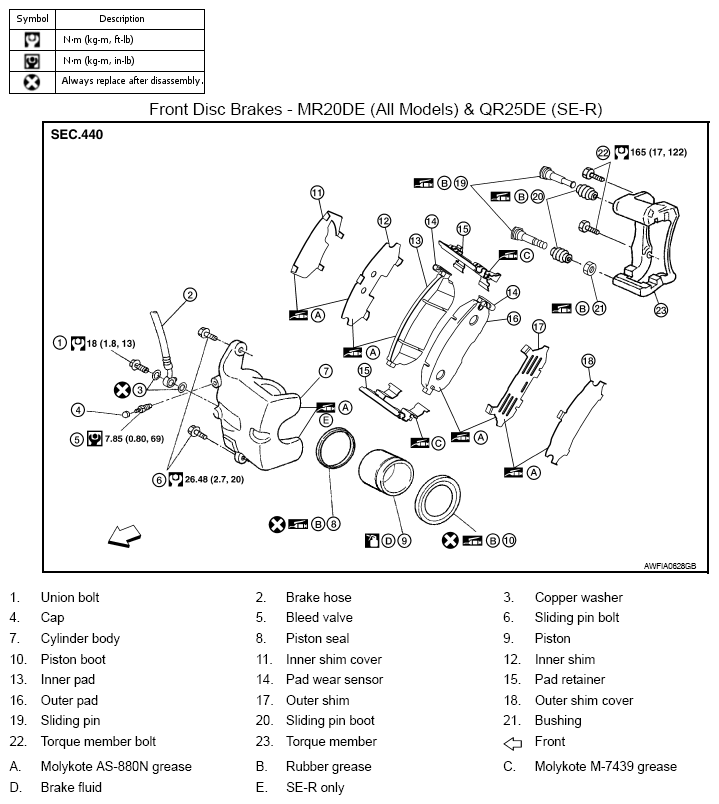

Fig 1: Exploded View Of Front Disc Brake Components With Torque Specifications - MR20DE (All Models) & QR25DE (SE-R)

Courtesy of NISSAN MOTOR CO., U.S.A.

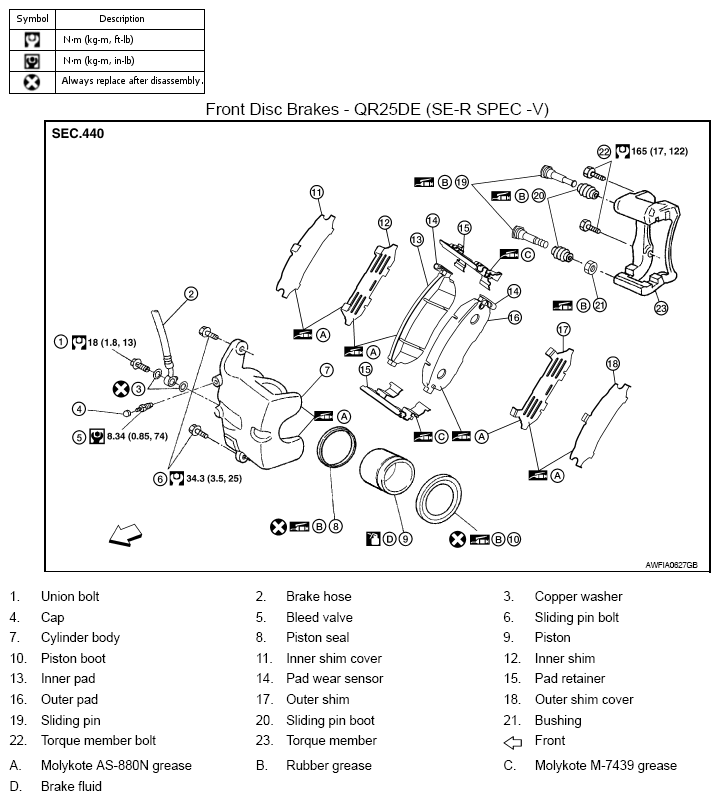

Fig 2: Exploded View Of Front Disc Brakes Components With Torque Specifications - QR25DE (SE-R SPEC-V)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Clean dust with a vacuum dust collector. Do not blow with compressed air.
