Disassembly and Assembly (Right Side): Notes

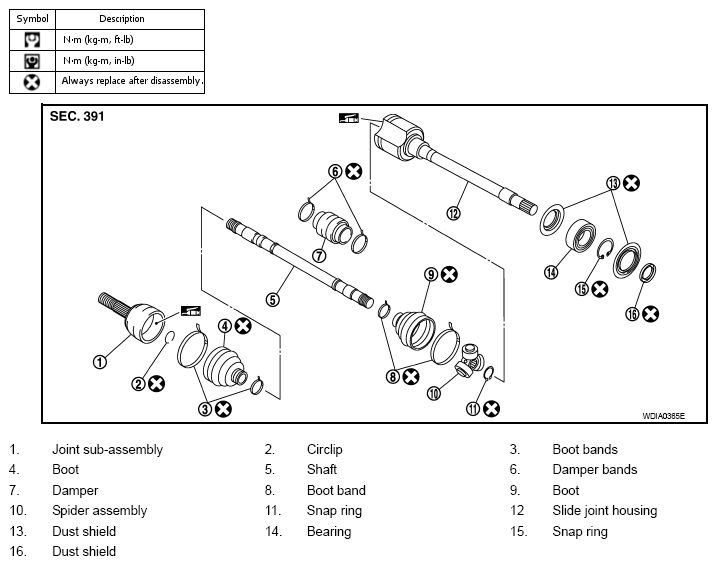

Fig 1: Exploded View Of Circlip, Dust Shield, Slide Joint Housing, Snap Ring, Boot, Shaft, Damper & Joint Sub Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
