Removal and Installation: Components

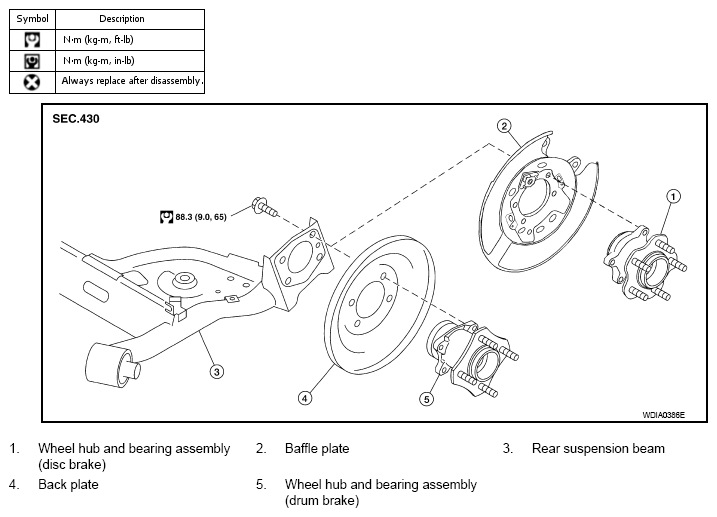

Fig 1: Exploded View Of Baffle Plate, Rear Suspension Beam, Back Plate, Wheel Hub & Bearing Assembly With Torque Specifications (Disc & Drum Brake)

Courtesy of NISSAN MOTOR CO., U.S.A.
