Glove Box Assembly

Removal

1. Remove cluster lid C. Refer to CLUSTER LID C  - procedure.
2. Remove the instrument panel trim (RH).
3. Remove glove box lower finisher screws (A), remove glove box lower finisher (1).
   Fig 1: Identifying Glove Box Lower Finisher Screws And Glove Box Lower Finisher

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove the glove box assembly
   1. Remove the two lower glove box assembly screws (A).
   2. Open the glove box and remove the four upper glove box assembly screws (B).

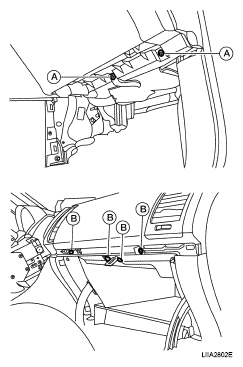

      Fig 2: Identifying Upper And Lower Glove Box Assembly Screws

      Courtesy of NISSAN MOTOR CO., U.S.A.

Installation

Installation is in the reverse order of removal.
