Engine Assembly: Component

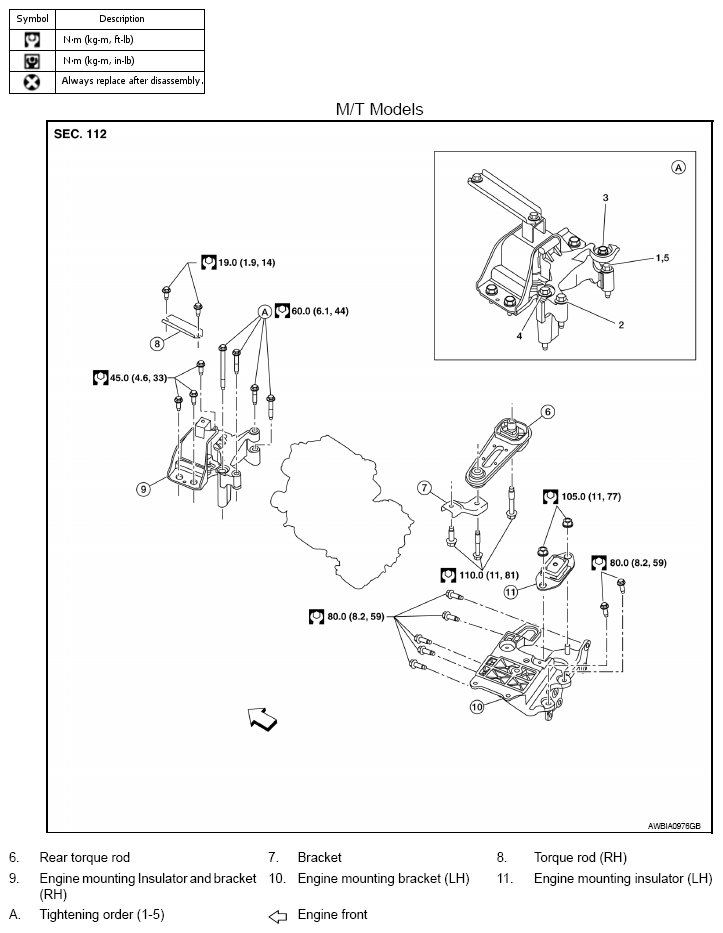

Fig 1: Exploded View Of Engine Assembly Components With Torque Specifications - M/T Models
G07137298Courtesy of NISSAN MOTOR CO., U.S.A.

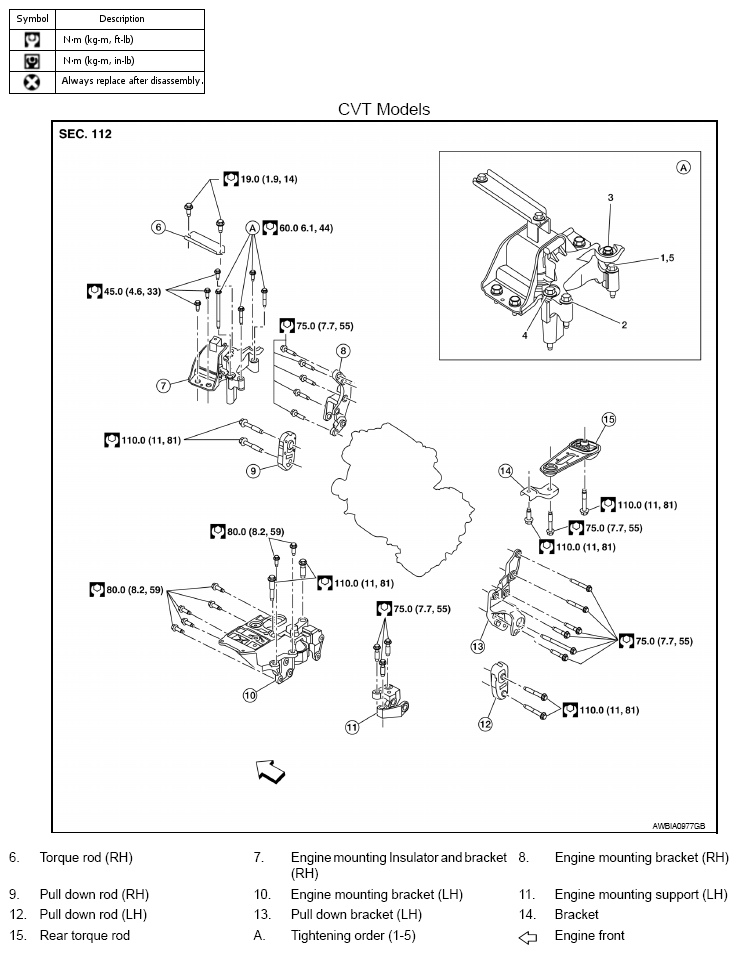

Fig 2: Exploded View Of Engine Assembly Components With Torque Specifications - CVT Models
G07137299Courtesy of NISSAN MOTOR CO., U.S.A.
