Fuel Tank: Component

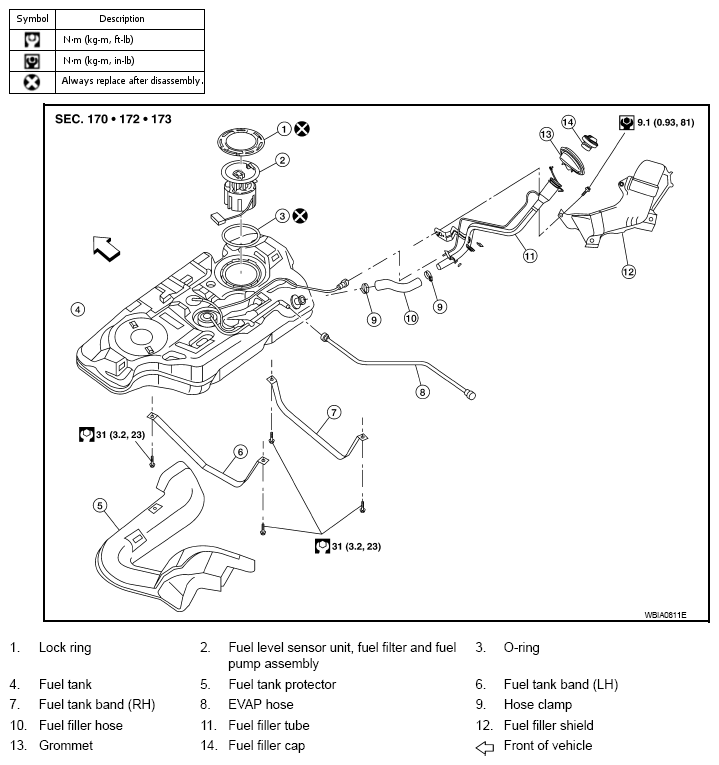

Fig 1: Exploded View Of Fuel Tank Components With Torque Specifications
G07137768Courtesy of NISSAN MOTOR CO., U.S.A.
