ASCD Indicator: Wiring Diagram

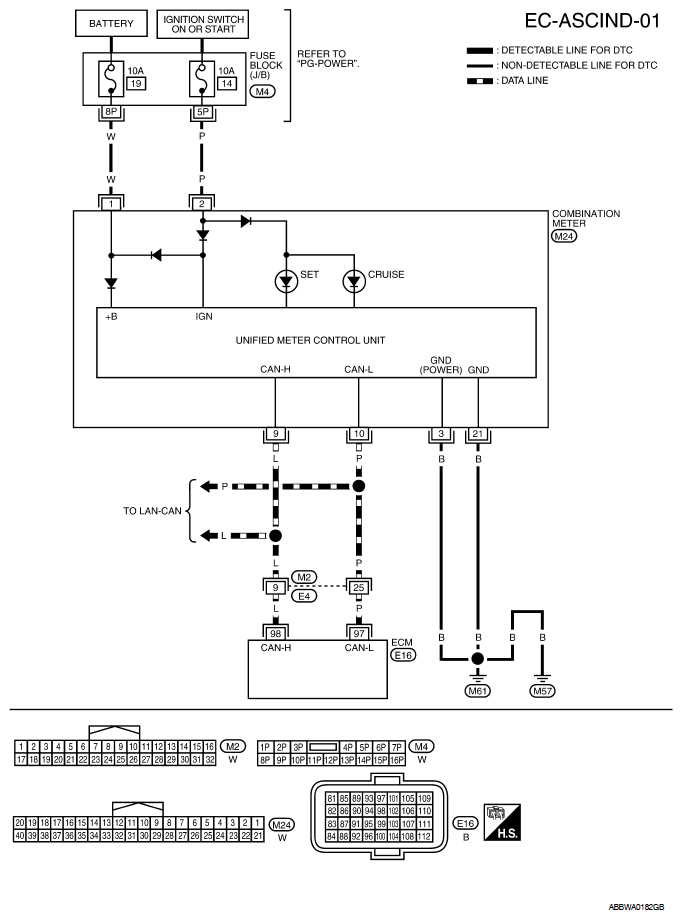

Fig 1: EC-ASCIND-01 - Wiring Diagram
G07144474Courtesy of NISSAN MOTOR CO., U.S.A.
