Engine Control System - Component Testing (Qr25DE)
›
Mil And Data Link Connector
›
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram

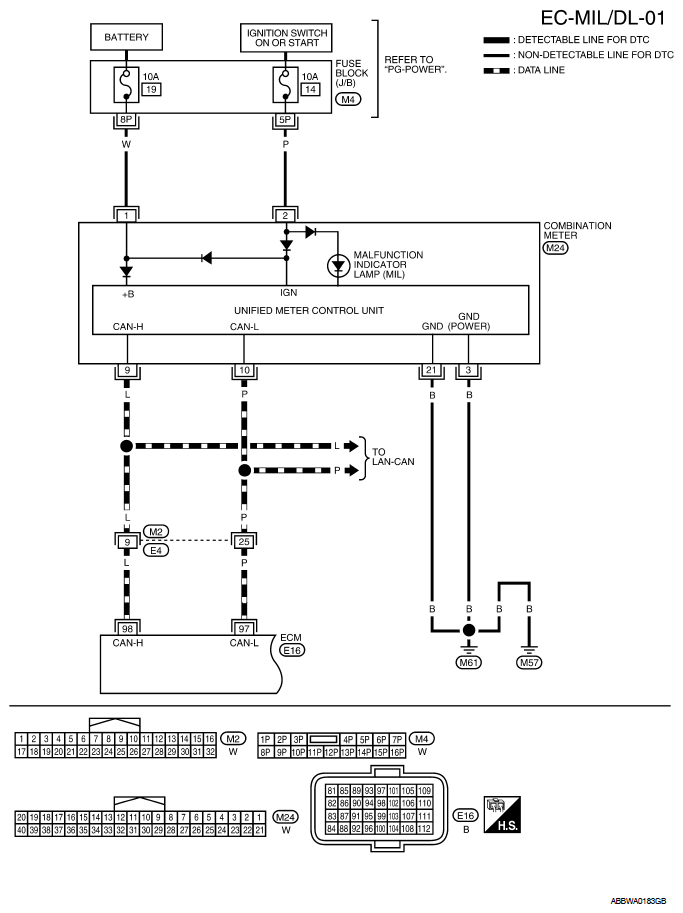

Fig 1: EC-MIL/DL-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

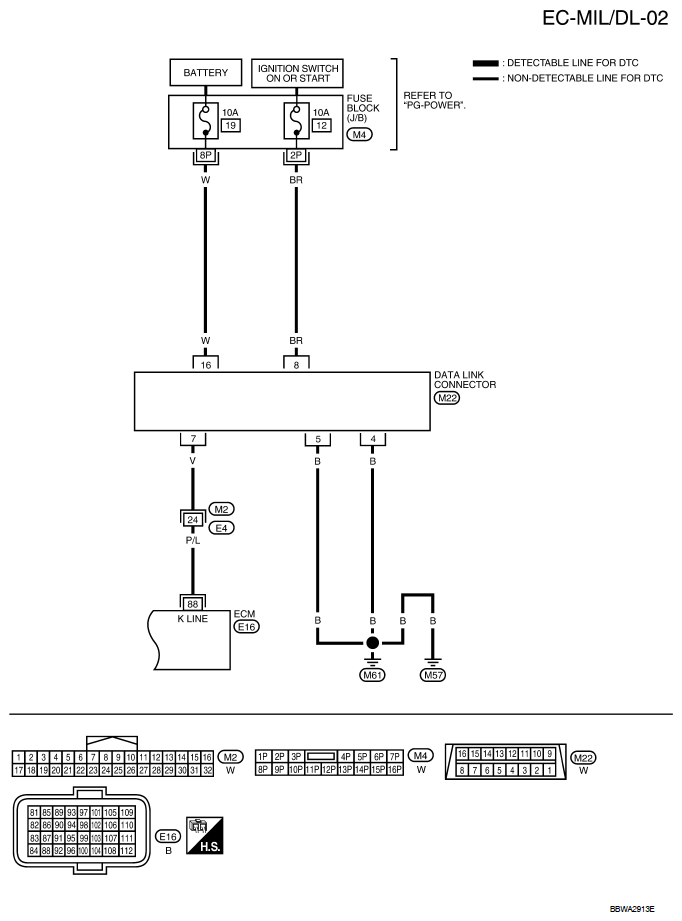

Fig 2: EC-MIL/DL-02 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
