DTC P0340 CMP Sensor (Phase): Wiring Diagram

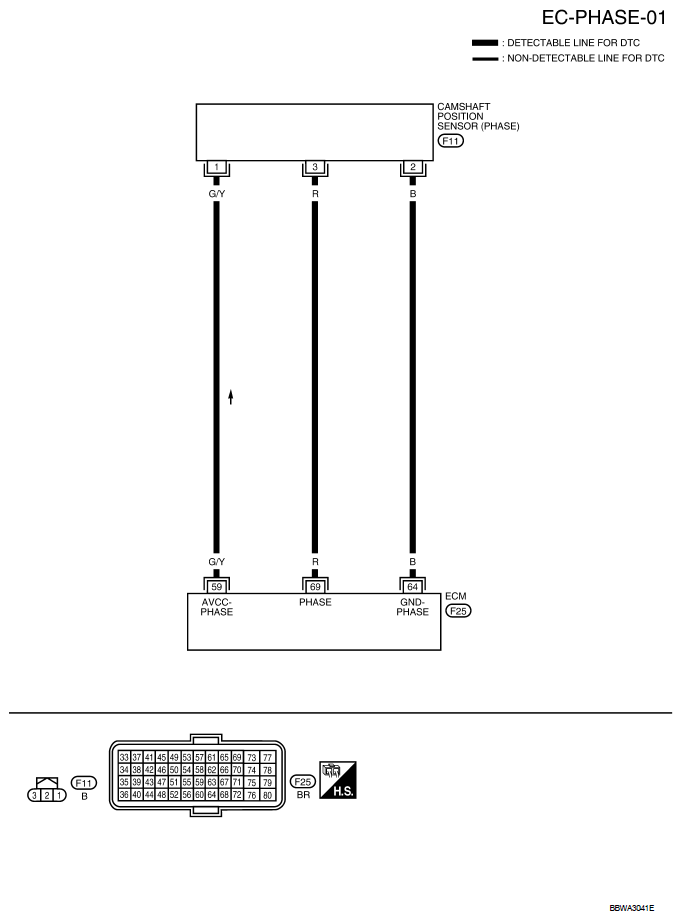

Fig 1: EC-PHASE-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-III.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINAL AND WIRE COLOR REFERENCE CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

G/Y

Sensor power supply [Camshaft position sensor (PHASE)]

[Ignition switch: ON]

Approximately 5 V

Sensor ground [Camshaft position sensor (PHASE)]

[Engine is running]

Warm-up condition
Idle speed

Approximately 0 V

Camshaft position sensor (PHASE)

[Engine is running]

Warm-up condition
Idle speed
NOTE: The pulse cycle changes depending on RPM at idle

1.0 - 2.0 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

[Engine is running]

Engine speed: 2, 000 RPM

1.0 - 2.0 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
