Diagnosis Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
  Refer to "GROUND INSPECTION ".

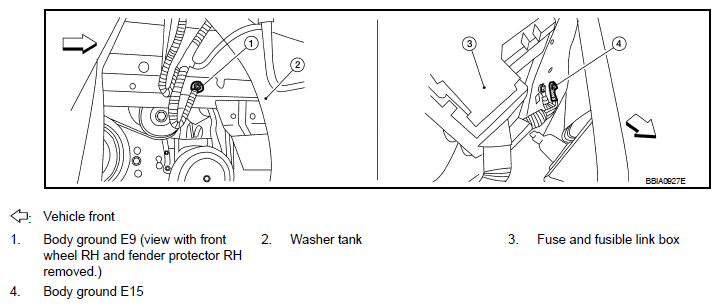

  Fig 1: Identifying Washer Tank, Fuse And Fusible Link Box And Body Ground E15
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

  OK: GO TO 2.

  NG: Repair or replace ground connections.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor (1) harness connector.
2. Turn ignition switch ON.

  Fig 2: Location Of Accelerator Pedal Position (APP) Sensor Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Voltage: Approximately 5 V
3. Check voltage between APP sensor terminal 4 and ground with CONSULT-III or tester.

  Fig 3: Checking Voltage Between APP Sensor Terminal 4 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Voltage: Approximately 5 V

  OK or NG

  OK: GO TO 3.

  NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between APP sensor terminal 5 and ground with CONSULT-III or tester.
Fig 4: Checking Voltage Between APP Sensor Terminal 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 7.

NG: GO TO 4.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 5 and ECM terminal 87. Refer to WIRING DIAGRAM .
  Continuity should exist .

  OK or NG

  OK: GO TO 5.

  NG: Repair open circuit.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

TERMINAL REFERENCE CHART

ECM terminal	Sensor terminal	Reference Wiring Diagram
72	Refrigerant pressure sensor terminal 3	"WIRING DIAGRAM "
76	Crankshaft position sensor (POS) terminal 1	"WIRING DIAGRAM "
87	APP sensor terminal 5	"WIRING DIAGRAM "
91	EVAP control system pressure sensor terminal 3	"WIRING DIAGRAM "

OK or NG

OK: GO TO 6.

NG: Repair short to ground or short to power in harness or connectors.

CHECK COMPONENTS
Check the following.
- Crankshaft position sensor (POS) (Refer to "COMPONENT INSPECTION ".)
- Refrigerant pressure sensor (Refer to TROUBLE DIAGNOSIS .)
- EVAP control system pressure (Refer to "COMPONENT INSPECTION ".)
OK or NG

OK: GO TO 11.

NG: Replace malfunctioning component.
CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following;
  ECM terminal 84 and APP sensor terminal 2,

  ECM terminal 100 and APP sensor terminal 1.

  Refer to WIRING DIAGRAM .

  Continuity should exist .
4. Also check harness for short to ground and short to power.
  OK or NG

  OK: GO TO 8.

  NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following;
  ECM terminal 81 and APP sensor terminal 3,

  ECM terminal 82 and APP sensor terminal 6.

  Refer to WIRING DIAGRAM .

  Continuity should exist .
2. Also check harness for short to ground and short to power.
  OK or NG

  OK: GO TO 9.

  NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 11.

NG: GO TO 10.
REPLACE ACCELERATOR PEDAL ASSEMBLY
Replace accelerator pedal assembly. Refer to "REMOVAL AND INSTALLATION ".

INSPECTION END
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

INSPECTION END
