Engine Control System - Introduction (MR20DE) (Except CALIFORNIA)
›
Service Information
›
Engine Control System
›
Schematic
Engine Control System: Schematic

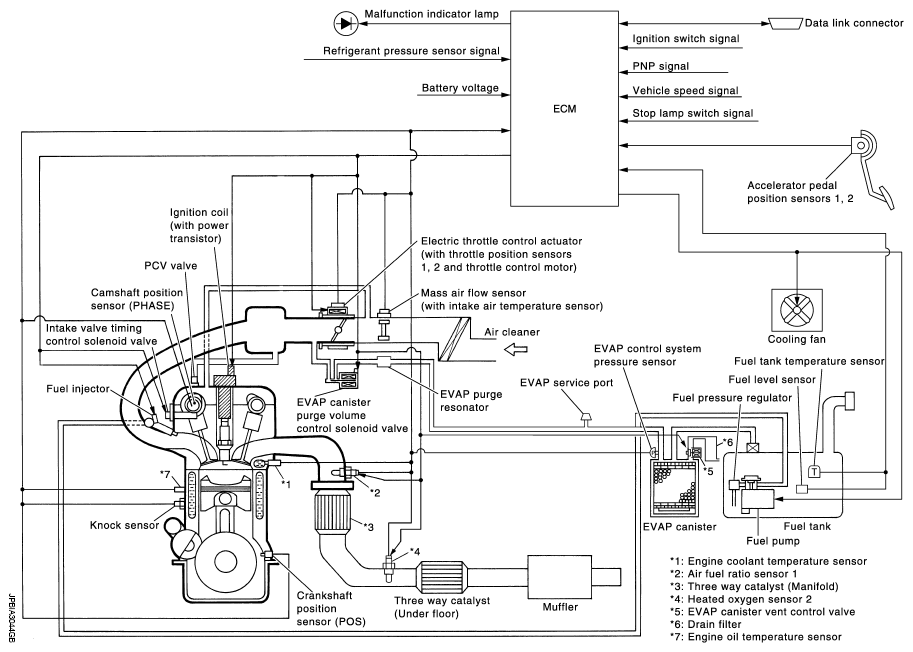

Fig 1: Engine Control System - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
