Engine Control System - Introduction (MR20DE) (Except CALIFORNIA)
›
Service Information
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System - Engine Mechanical&Other
System - Engine Mechanical&Other

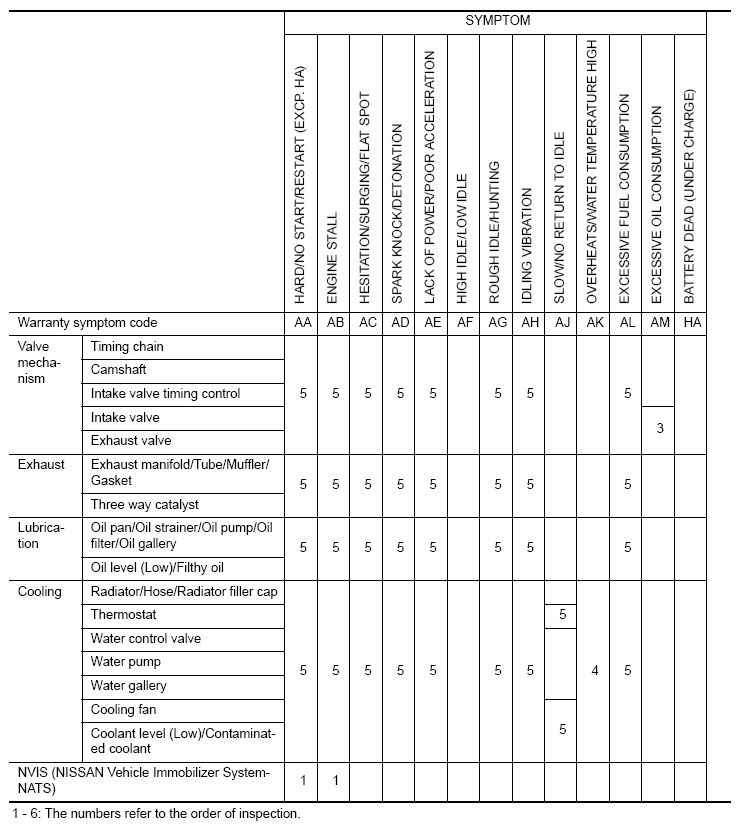

Fig 1: Engine Mechanical & Other - Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

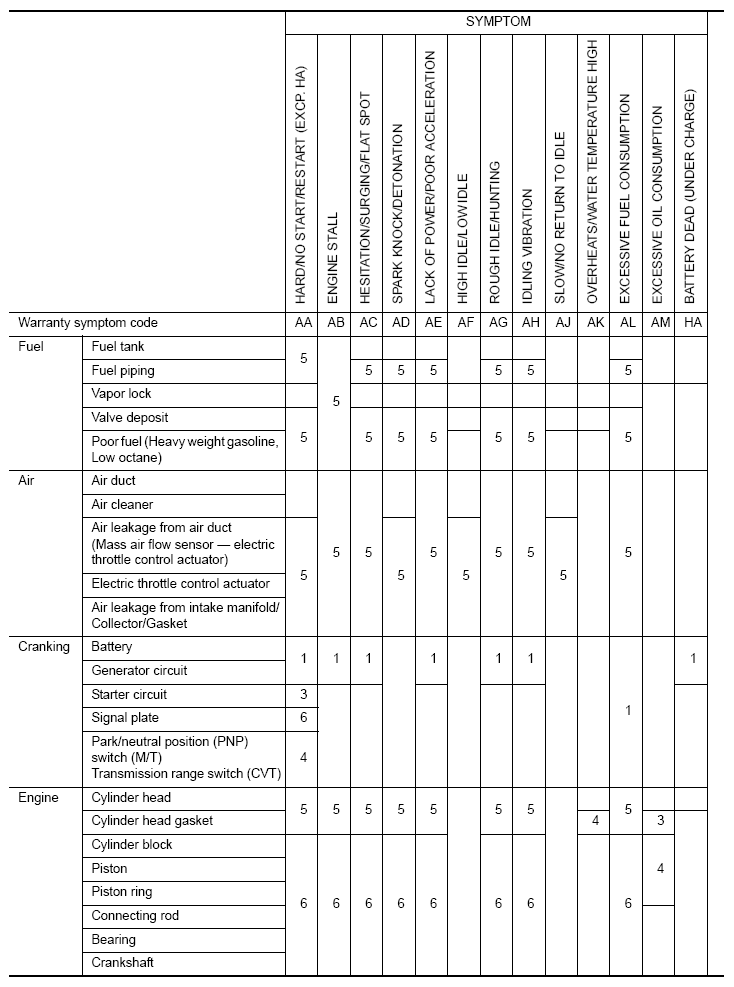

Fig 2: Engine Mechanical & Other - Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
