Vacuum Hose Drawing

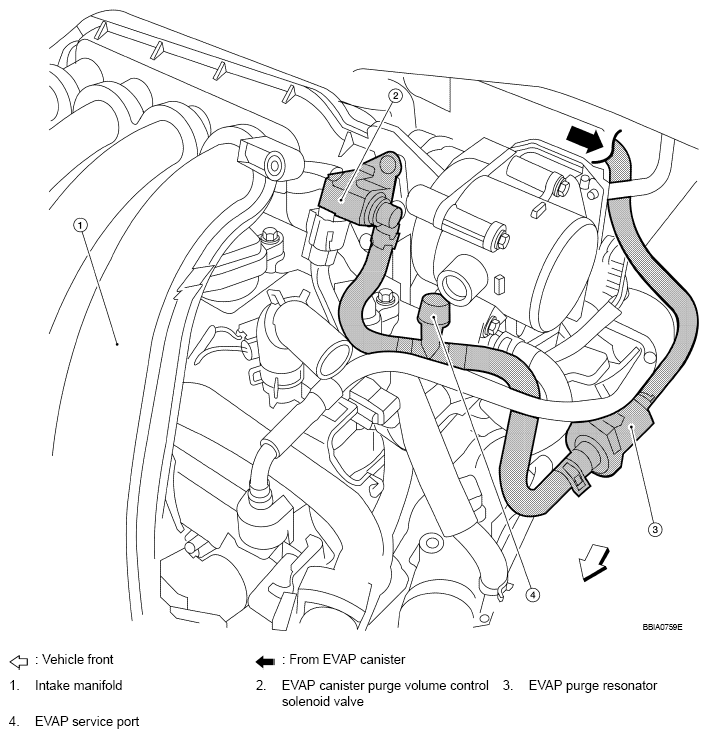

Fig 1: Location Of Intake Manifold, EVAP Canister Purge Volume Control Solenoid Valve And EVAP Purge Resonator

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

Refer to "SCHEMATIC " for Vacuum Control System .
