Exploded View

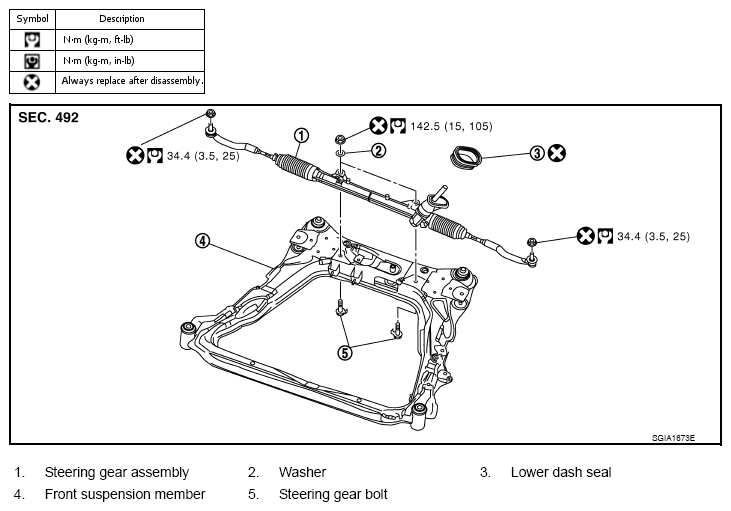

Fig 1: Exploded View Of Power Steering Gear With Torque Specifications
G07139622Courtesy of NISSAN MOTOR CO., U.S.A.

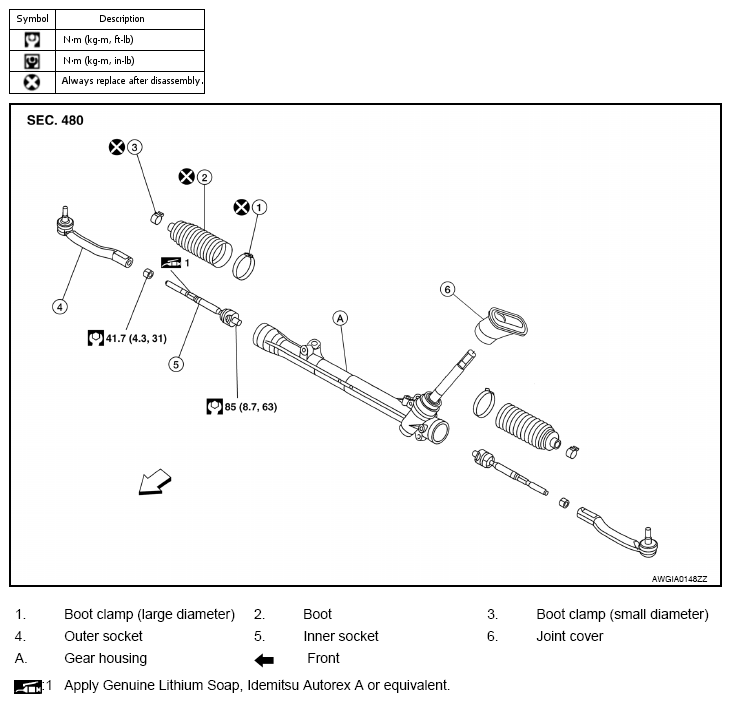

Fig 1: Exploded View Of Power Steering Gear With Torque Specifications
G07139623Courtesy of NISSAN MOTOR CO., U.S.A.
