Removal and Installation: Installation

Installation is in the reverse order of removal. For tightening specifications, refer to "COMPONENT ".

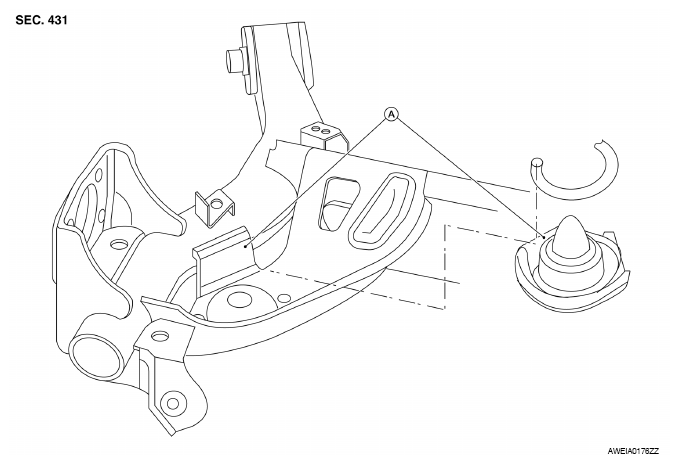

• When installing rear spring rubber seat, be sure that the flat areas (A) are aligned.
  Fig 1: Identifying Rear Spring Rubber Seat Flat Areas

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When installing rear spring, be sure that the gap (A) is less than 5mm (0.20 in).
  Fig 2: Measuring Rear Spring Gap

  Courtesy of NISSAN MOTOR CO., U.S.A.
