Automatic Transmission - CVT : Re0F10A
›
Service Information
›
CVT System
›
Hydraulic Control System
Hydraulic Control System

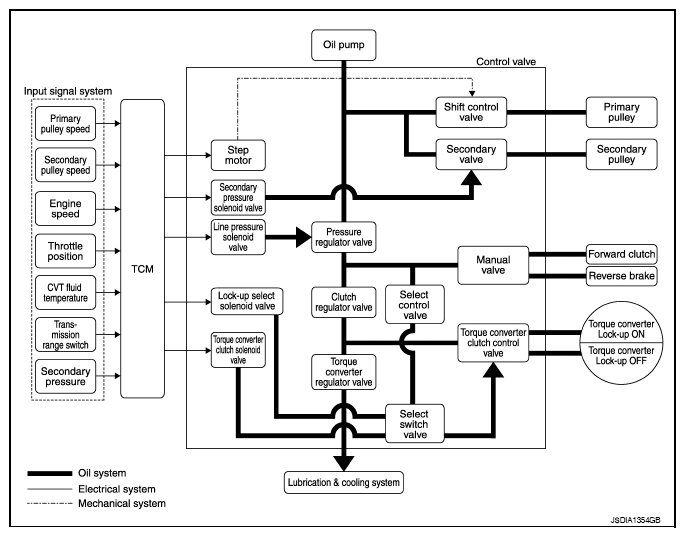

Fig 1: Hydraulic Control System Diagram
