Automatic Transmission - CVT : Re0F10A
›
Service Information
›
On-Vehicle Service
›
Oil Pan
›
Components
›
Notes
Oil Pan: Components: Notes

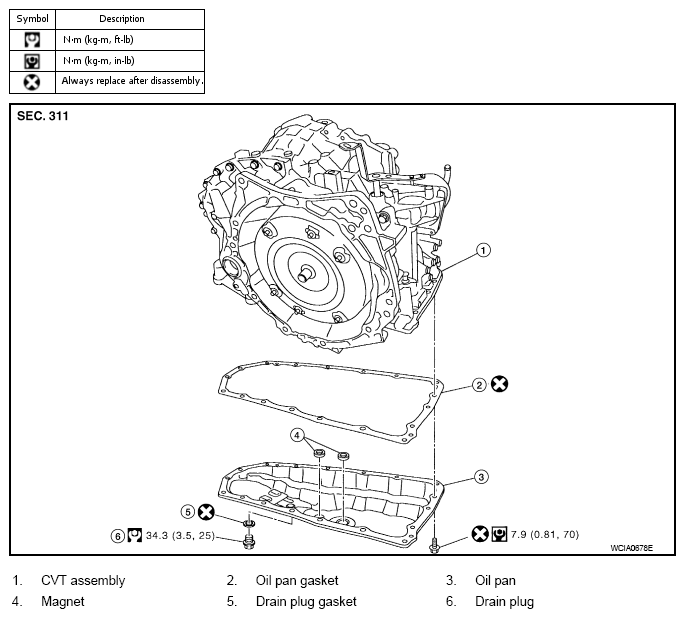

Fig 1: Exploded View Of Oil Pan Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
