Automatic Transmission - CVT : Re0F10A
›
Service Information
›
Shift Control System
›
Removal and Installation
›
Control Cable Components
Control Cable Components

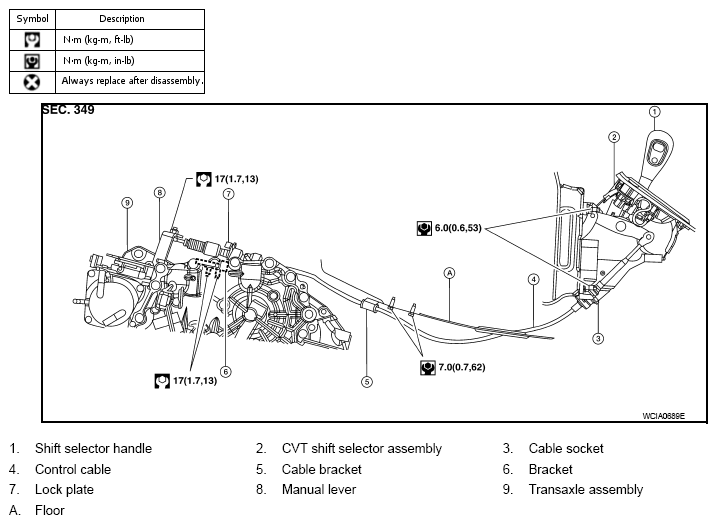

Fig 1: Exploded View Of Control Cable Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
