System - Basic Engine Control System

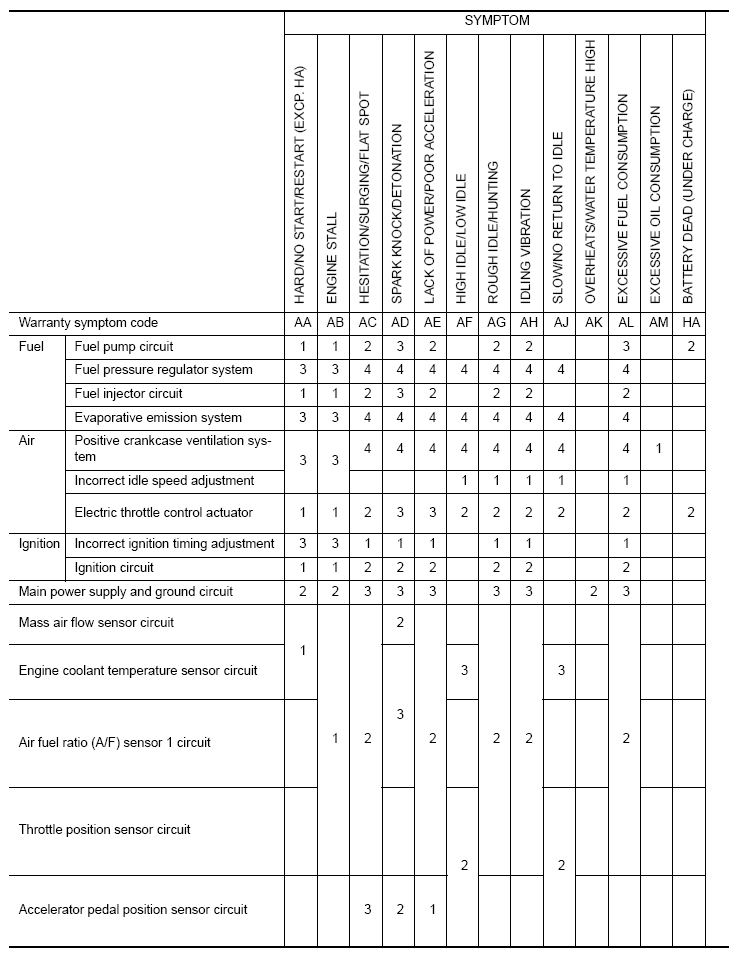

Fig 1: Basic Engine Control System Symptom Matrix Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

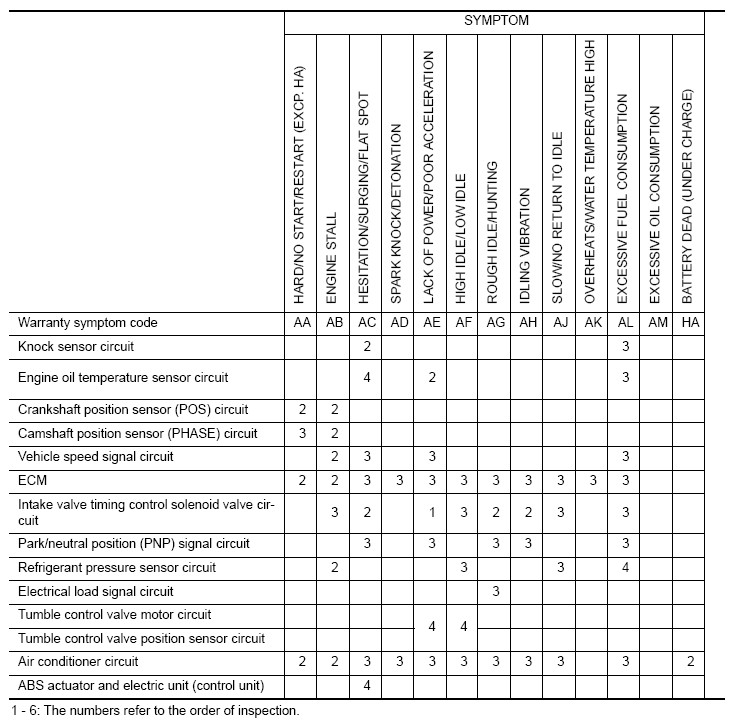

Fig 2: Basic Engine Control System Symptom Matrix Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

1 - 6: The numbers refer to the order of inspection.

(continued in following Information)
