Side Curtain Air Bag Module: Component

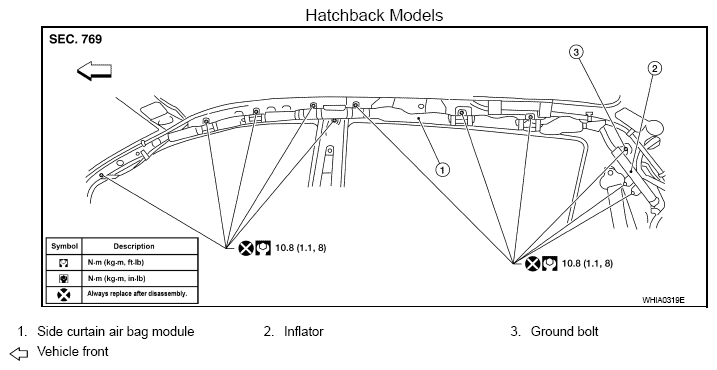

Fig 1: Identifying Side Curtain Air Bag Module - Hatchback Models

Courtesy of NISSAN MOTOR CO., U.S.A.

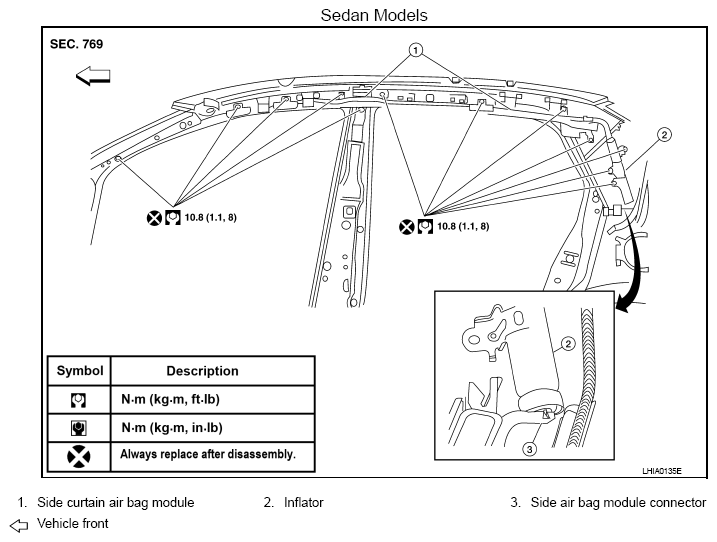

Fig 2: Identifying Side Curtain Air Bag Module - Sedan Models

Courtesy of NISSAN MOTOR CO., U.S.A.
