A/T Shift Lock System
›
Shift Lock System Parts Location
Shift Lock System Parts Location

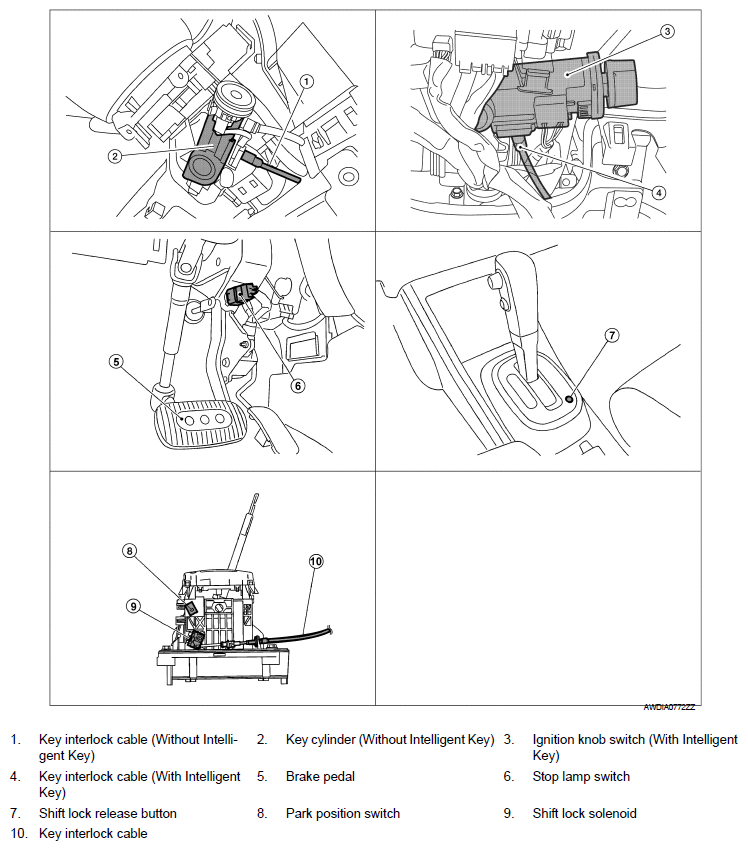

Fig 1: Location of Shift Lock System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
